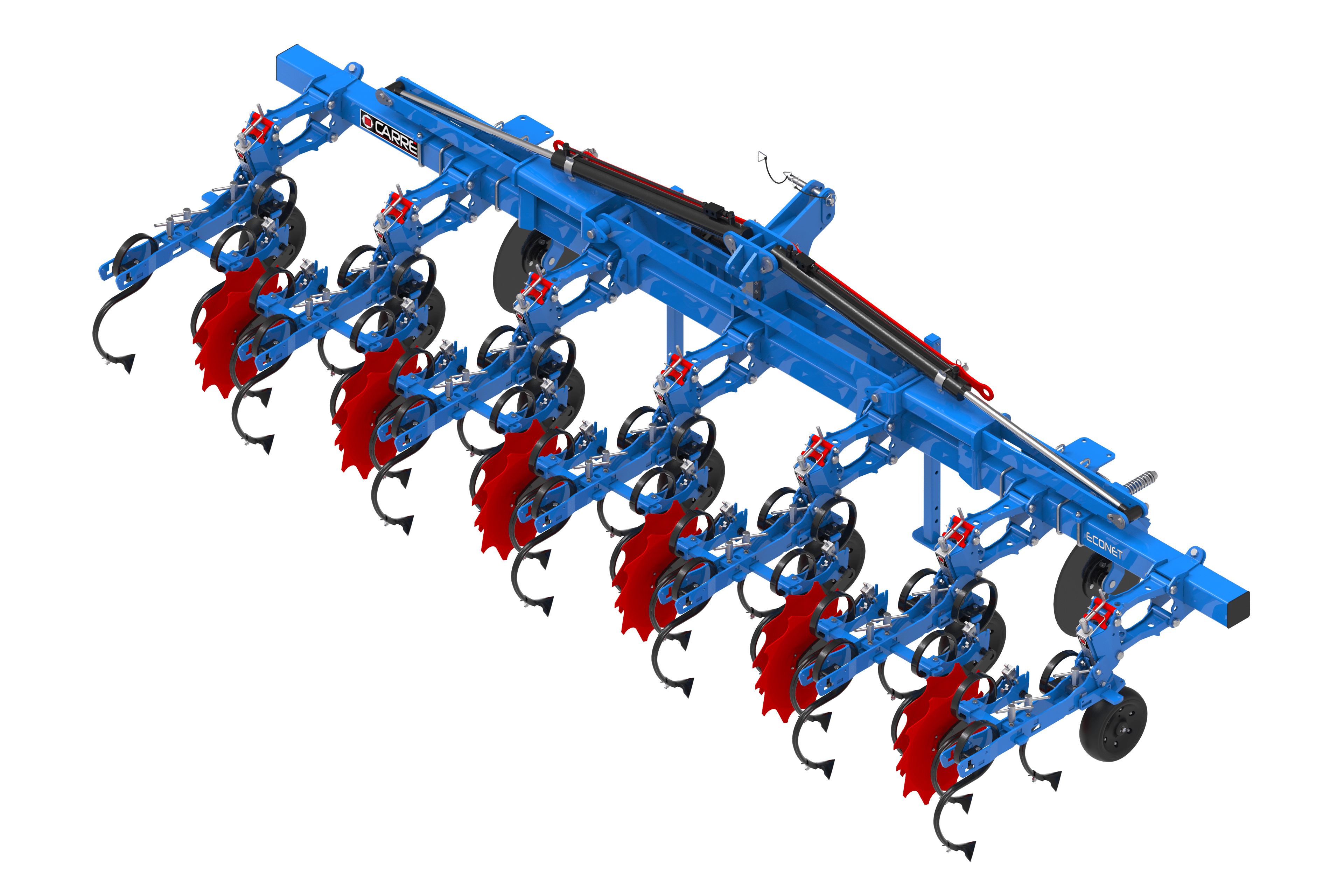

FOLDING SINGLE BEAM ECONET

Ideal to hoe with fixed inter-row and drive safely !

These machines are ideal for use on a wide range of crops with fixed row spacing.
They combine lightness and robustness for efficient work in all crops and in all conditions.

Available from 6 to 18 rows!

See specifications

Available with Integrated Guidance System SGI

A demonstration ?

Make a request

The documentation

Donwload the documentation

Our importers

Consulter la carte

The product notice

Download the notice

Spare parts

Discover

Find your machine’s registration number in the instruction manual, or on the number plate affixed to the machine:

38022150 > ECONET MONOPOUTRE REPLIABLE

Download the notice

38010004 > ECONET MONOPOUTRE REPLIABLE

THE FRAME

3 point hitch with anti-rotation pin category 2/3
Welded frame in square beam 120x5mm
Hydraulic folding to 3 m
Pair of stabilisator coulters Ø500mm included
Double folding chassis for 18 rows 45/50cm and 12 rows 75/80cm – Transport height 3,6m
Road light and signals included

Our recommandations

Number of rows	Spacing (cm)	Recommended elements	Power (Hp)	Weight (Kg)*
Sugar Beet
12	45-50	E ou I	110	900 à 1200
18	45-50	E ou I	160	2300 à 2800
Sunflowers
7	60	E,I,L ou B	90	650 à 1100
9	60	E,I,L ou B	110	750 à 1300
Maize
6	75-80	L ou B	90	750 à 950
8			110	950 à 1200
12			160	2200 à 2700

* According to equipment

THE ELEMENTS

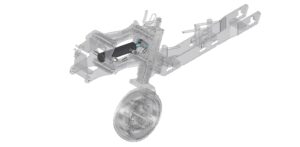

The hoeing element guarantees a constant working depth over the whole width of the cultivator
thanks to the amplitude of oscillation of its parallelogram and its independent grounding wheel.

Robust and maintenance-free design, it adapts to all row crops using its quick setting systems. A wide choice of tines and options to insure an efficient and accurate work.

LIGHT WEEDER ELEMENT: ALL CROPS

2 hydraulic lifting versions

Version with 23cm horizontal raising from the work position

Version with 52cm vertical raising from the work position

Version with 52cm vertical raising from the work position
Mounting of the tine in the front or at the back of the element
Stringer removable for easier modularity
Depth control wheel Ø300x100mm self cleaning, with ball bearing without maintenance
Depth control work by screw handle with accuracy of 5mm
Automatic locking hook of the element in high position

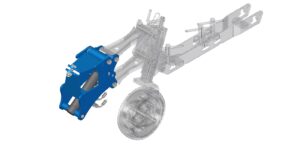

Parallelogram with broad 320mm oscillation amplitude guaranteeing close terrain hugging
Easy moove with only one fixation bolt
Fastening jaw 125mm with tilting plates
Joint pin Ø30 mm on DRY-TECH polymer bushes with built-in maintenance-free lubrication
Single arm wheel holder to prevent from jaming

Clearance under chassis 60 to 75cm. For use at a grown crop stage.

ELEMENT E

For inter-rows spacing from 45 to 60cm
Versatile on all type of soils
3 tines 32x12mm
Triangular ploughshare 150mm
Several ploughshare width in option

ELEMENT I

For inter-rows spacing from 45 to 60cm
Suitable for sandy or silt clay soil
To cut-off with accuracy
32X12 tines with adjustable rigid holder
Flat triangular ploughshare 200mm
Several ploughshare width in option
L blades right and left

ELEMENT C

For inter-row distances from 15 to 30cm
1 element for hoeing 1, 2 or 3 crop rows
To cut-off with accuracy
From 1 to 3 32×12 tines with adjustable rigid holder
Flat triangular ploughshare 200mm
Several ploughshare width in option

ELEMENT L

For inter-rows from 60 to 80 cm
Versatile on all type of soils
5 tines 32x12mm
Triangular ploughshare 150mm
Several ploughshare width in option

ELEMENT B

For inter-rows from 60 to 80 cm
Suitable for sandy or silt clay soil
To cut-off with accuracy
5 32X12 tines with adjustable rigid holder
Flat triangular ploughshare 200mm
Several ploughshare width in option
L blades right and left

ELEMENT X

For inter-rows from 60cm
To work up to 10cm depth
Suitable for hard stony soil condition
5 tines 45x12mm
Straight reversible ploughshare
Triangular shares optional – W element

THE TINES

Curved 32X12 tine with :
– Triangular duckfoot 70, 105,
150, 175, 200 or 250mm
– Reversible straight share

Rigid fitted 32x12mm tin adjustable with its 50 to 300mm wide triangular plough share

32×12 tine with adjustable rigid holder and right or left L blade

Large clearance 45x12mm tine with :
– Reversible straight share
– Triangular ploughshare 150, 175, 200 or 250mm

CROP GUARDS

Retractable discs crop guard Ø500mm suitable for all conditions. Compatible with elements type E, L and X

Long retractable plant protector for optimal crop protection. Compatible with elements type E, L and X

THE EQUIPMENTS

SPRAY KIT : Localised liquid fertilising and spraying!

Piping protection tamp over the entire machine.
Quick coupling on Ø18mm central output
Spraying over the 1 jet row
Stainless steel flat jet 40° with drip plate
Flow rate from 40 to 150 L/ha

KIT SPRAY pulverisation sur le rang 1 buse

Spraying on the 2-jet row
Stainless steel flat jet 40° with drip plate
Flow rate from 40 to 150 L/ha

KIT SPRAY pulverisation sur le rang 2 buses

Fertilisation with injector on either side of the row
St. steel strip till mounted on straight tines 38x12mm
St. steel disc Ø1 / 1.5mm with integrated anti-drip and shut-off valve
Flow rate from 80 to 400 L/ha

KIT SPRAY fertilisation avec enfouisseur

SEMLOC

Sowing seed by surface broadcasting at the same time of hoeing

LIMIT SOIL EROSION AND TRAP NITRATE !

200L hopper with splined distributor, driven by a DPA mechanical gear or a GPS-controlled unit for dosing between 2 and 100 Kg/ha
Blower driven by 2 electric or hydraulic motors
Set of comb harrow to cover seeds
Access platform with footbridge

2 metering rollers for small and large seeds

8-flute distributor. For row spacing from 45 to 80 cm up to 12 rows

2 nozzles per row followed by 4 double combs

GPS-controlled control unit

KIT FERTI

For FRONT HOPPER : solid fertilisation localizer

WEIGHT BALANCE AND ACCURATE DOSING !

For inter-rows from 45 to 80 cm up to 16 rows
Distribution head with 4 to 16 nozzles
Hopper connection column Ø154mm
Ø40mm down pipe
Diffuser with Ø50mm decompression cyclone
Adjustable Ø45mm diffuser pipe for perfect positioning of the fertiliser

NETLINE

Netline can work in the rigid or floating position on soft soil and can be retracted when required Flexible star Ø360mm 16 tines, thickness 12mmor flexible star Ø240mm 14 tines, thickness 10mm

Fitted at the back of the element for inter-row from 0.45m to Compatible with ECONET F and ECONET with pushed linkage.
