TINE SEED DRILL

A lightweight seeder for simply and accurately planting grain crops !

In its new version without an onboard hopper, PENTASEM-ST is an effective tool for planting grain crops with a high working flow rate (speed of 12 kph).
This flexible tool offers the ability to use simplified seeding on levelled fields on stony or wet ground.
Its five tine rows with 15 cm spacing are evenly positioned ensuring that any debris is quickly and smoothly passed through.
The straight tine profile limits vibration to ensure very consistent seeding depth. PENTASEM-ST leaves a perfectly worked seed line that is levelled and packed.

Available in a 6 metre version!

See specifications
  • PROCESSUS PEINTUREDouble hydrau-mechanical safety locking (transport and work)
  • TRACTEURGreat consistancy in working depth. Two 2 pneumatic pressure wheels as standard. Seeder control from the cab thanks to electronic box
TRACTEUR
A demonstration ?
Make a request
The documentation
Download the documentation
Our importers
View the map
The product notice
Download the notice
Spare parts
Discover

Download the catalogue voucher
(This can be found in the instruction leaflet)

PENTASEM-ST>NOTICE>38020190
Download the notice
  • 3 point linkage between clevis N°3 – Pin N° 2/3
  • Mechanically welded monoblock frame, made from square tubes 100x8mm front/rear and transversal beam from flat bar 100x10mm
  • Five steel 50×15 tine carrier bars with 350mm spacing between bars and the 8mm tine bracket.
  • Hydraulically folds to 3m with dual hydraulic and mechanical safety mechanisms
  • Support and spreader head with 4 electric calibration valves not connected.

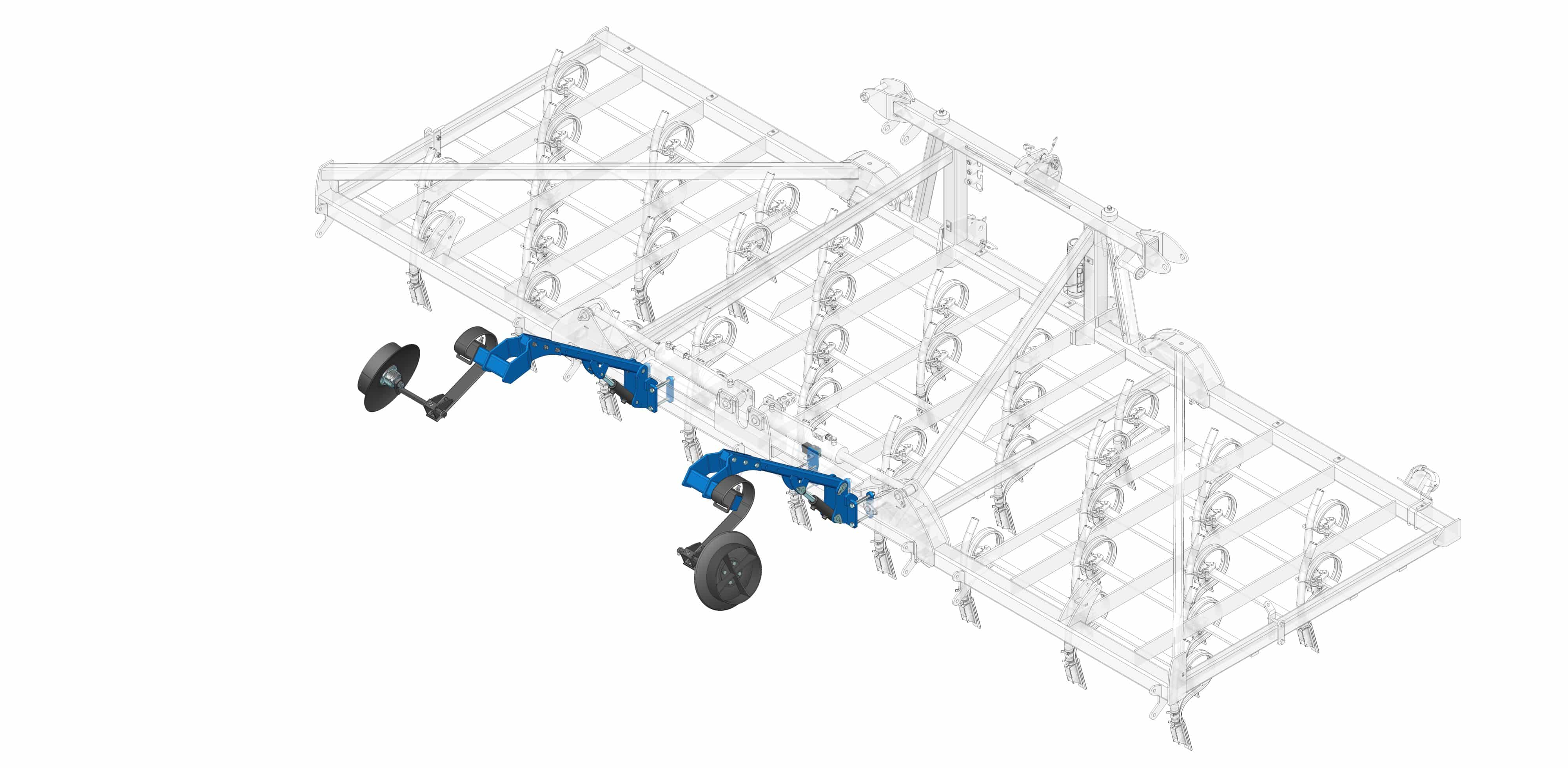

  • Seeding depth is adjusted by double central wheels on the fixed part and a pair of wheels on the extensions.
    Studded tyres Ø584x236mm
  • Road light and signals included
  • Spacing between rows: 15 or 20 cm
  • 75 cm gap between two tines on the same beam
  • 5 rows of teeth 35 cm apart

Our recommandations

Width : 6 m

FOLDING
Width (m)6
Inter-tine spacing (mm)150200
Number of tines4030
Power requirement (hp)150
Weight (kg)*14611397

*Depending on equipment (average value with comb harrow and bandage wheel)

THE SEEDING TINE

Straight 45×12 tine + straight coulter with single seed distributor
Under chassis clearance of 450 mm

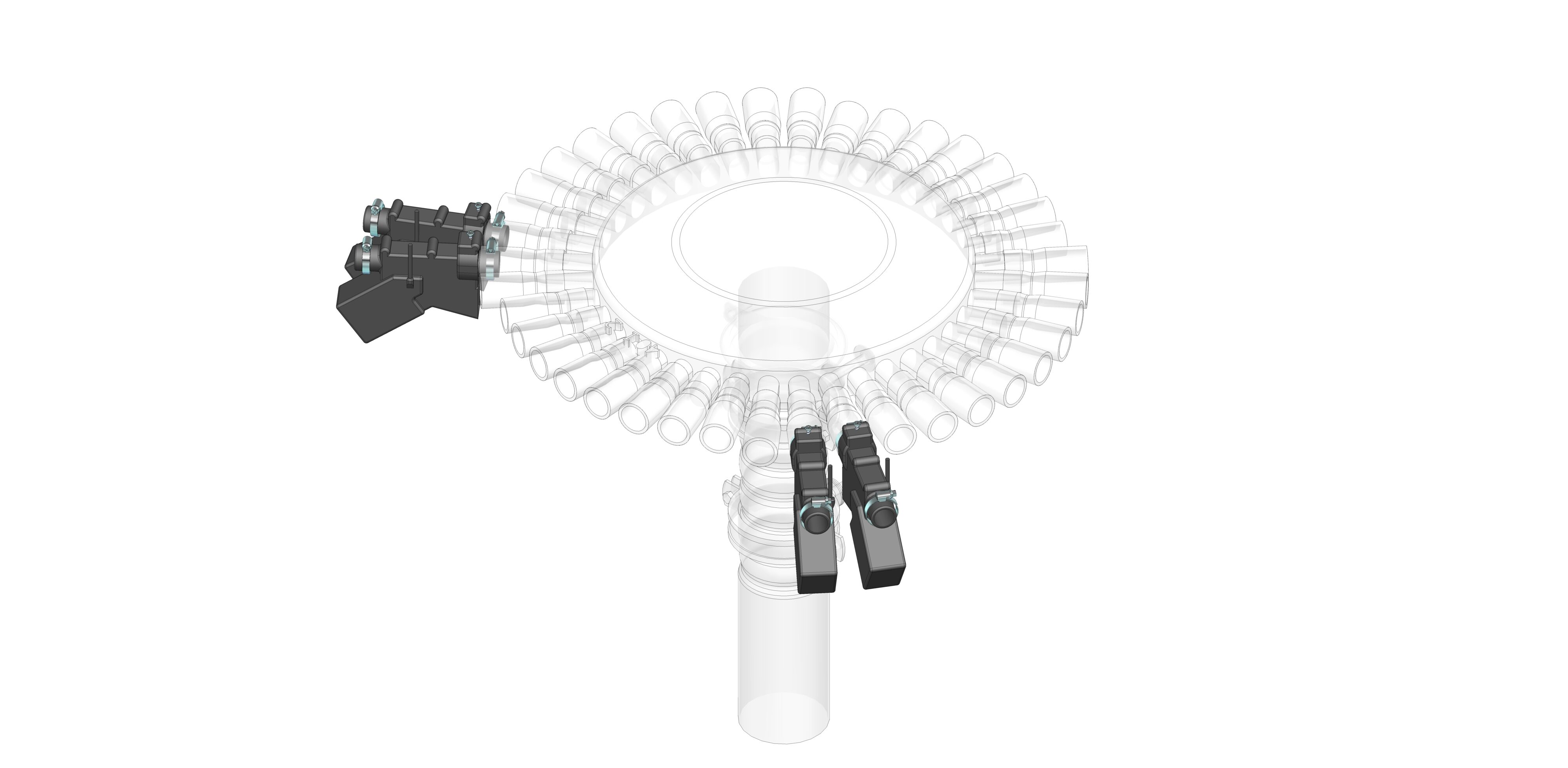

  • Mounting and 40 output distribution head located in the middle of the central chassis
  • Chain cable tightening system on drop pipes
Flexiboard_Hydraulique

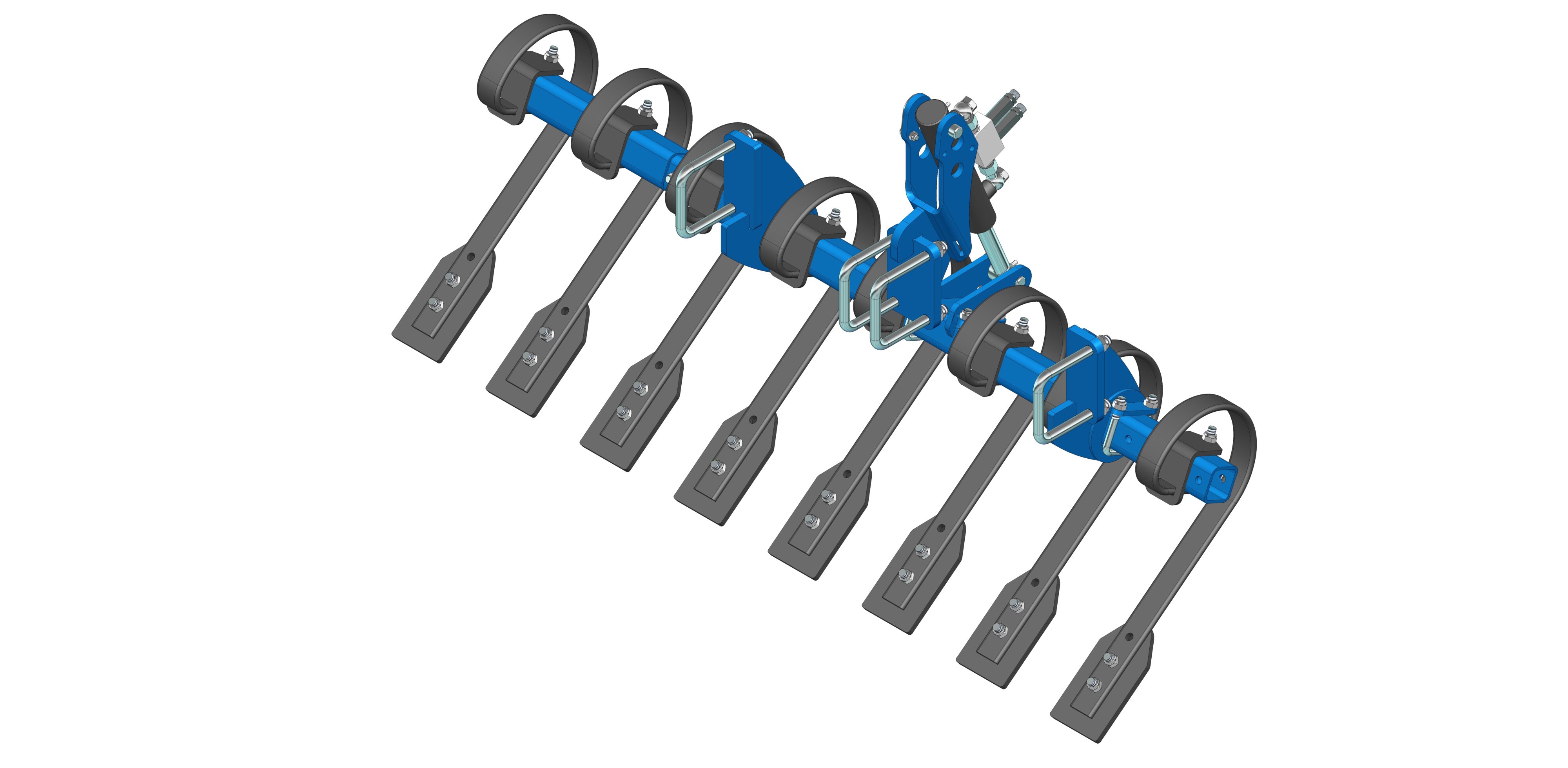

Flexiboard levelling blade with hydraulic adjustment

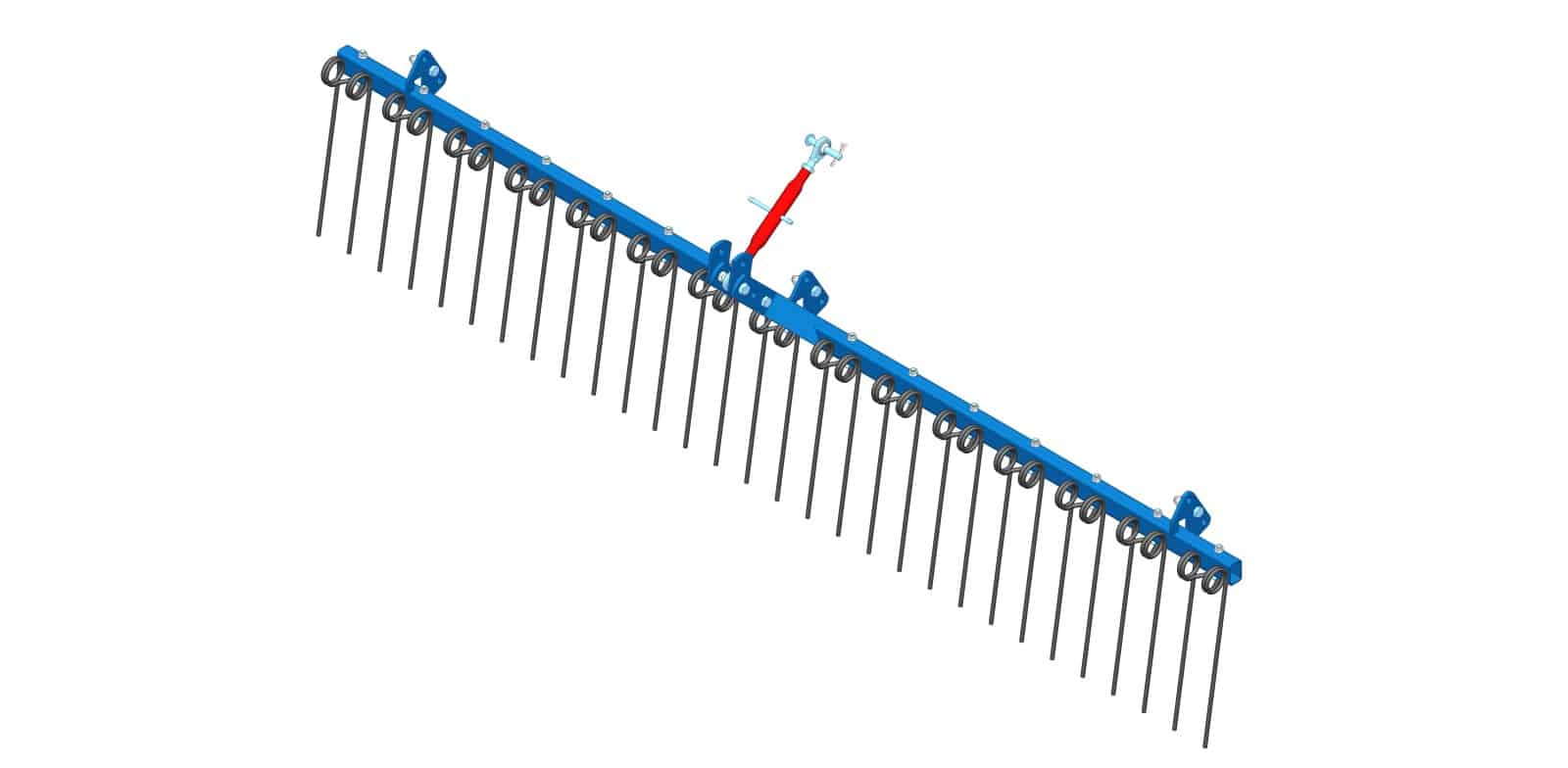

Comb harrow Ø10mm with mechanical adjustment
Rouleau_bandage_caoutchouc

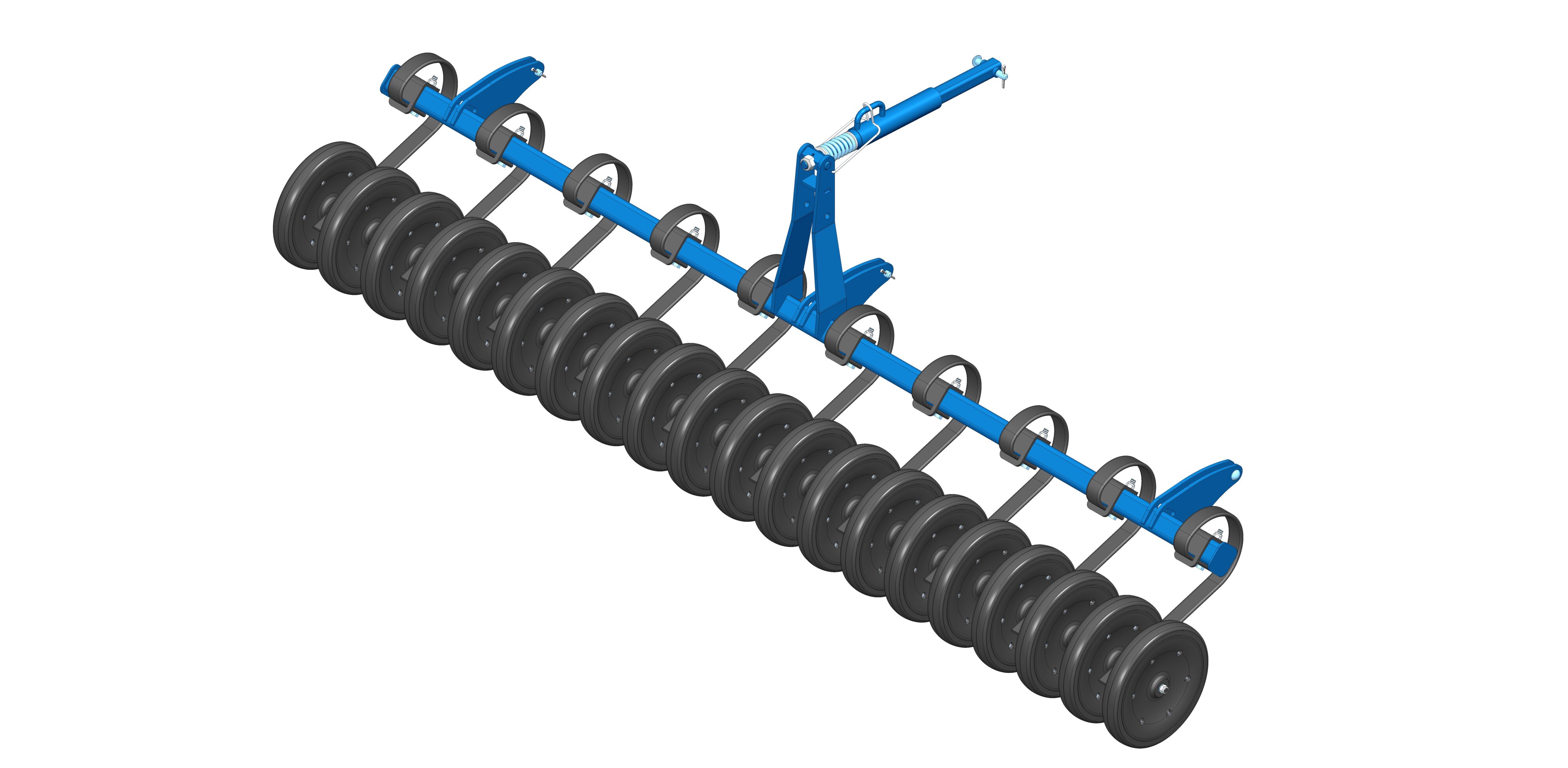

Bandage wheel roller Ø330mm with mechanical adjustment
Herse_Peignes_Ø10+Rouleau_Farmflex_Ø310

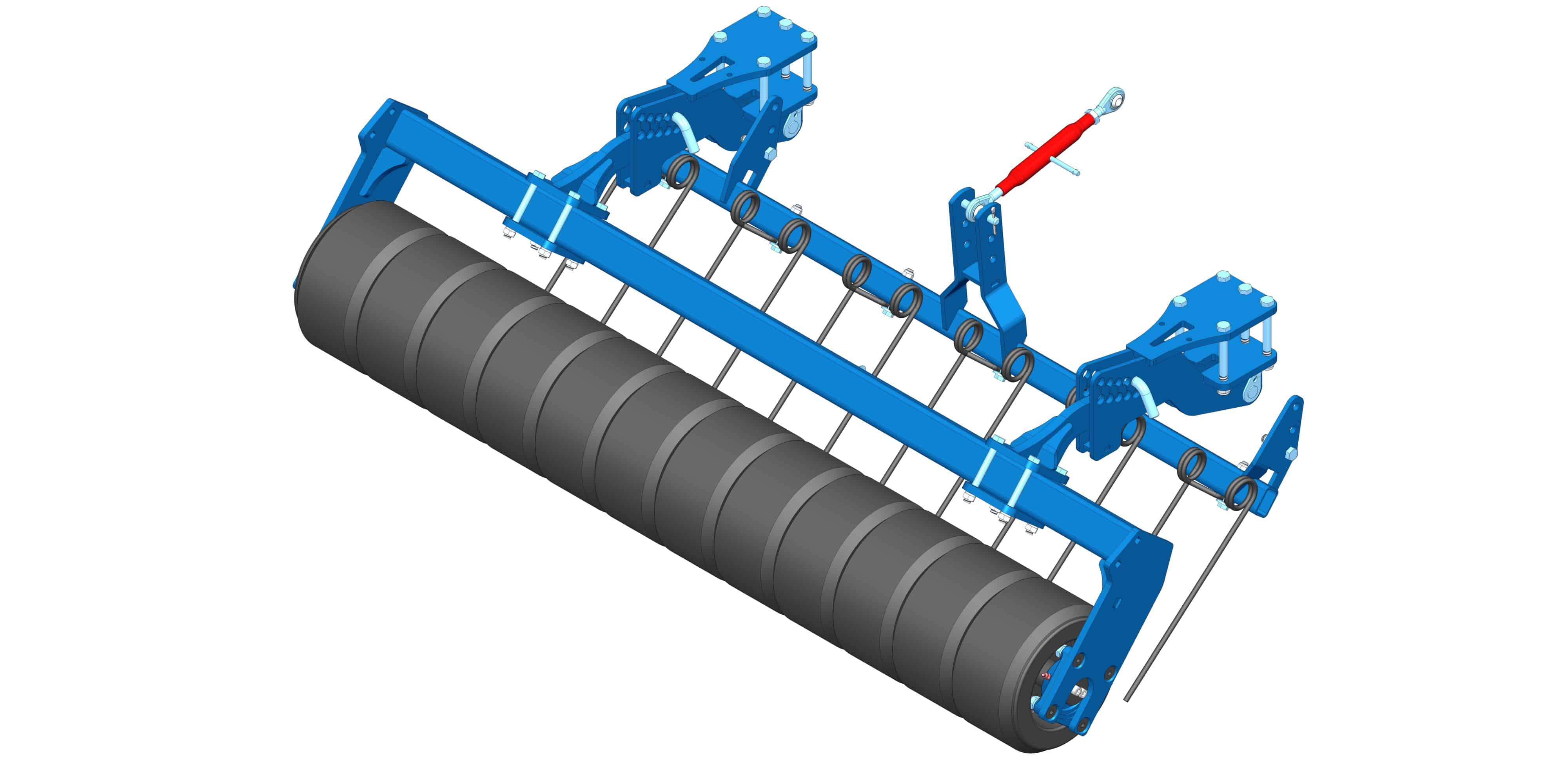

Comb harrow Ø30 + Farmflex Ø310 roller with mechanical adjustment

Flexiboard levelling blade with hydraulic adjustment

Comb harrow Ø10mm with mechanical adjustment

Bandage wheel roller Ø330mm with mechanical adjustment

Comb harrow Ø30 + Farmflex Ø310 roller with mechanical adjustment

Effaceurs de traces

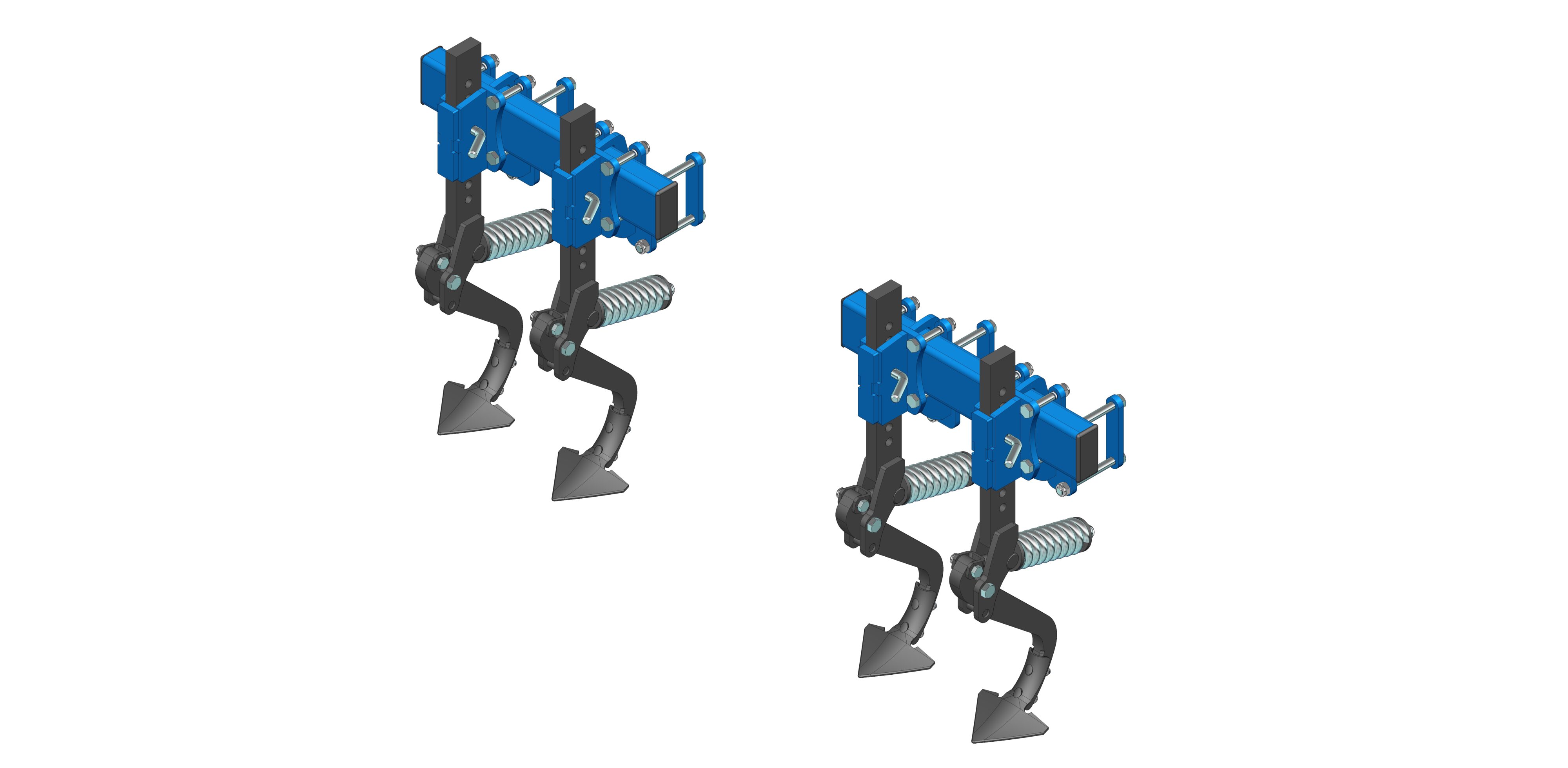

Set of 4 wheel mark eradicator
Jeu de 4 béquilles

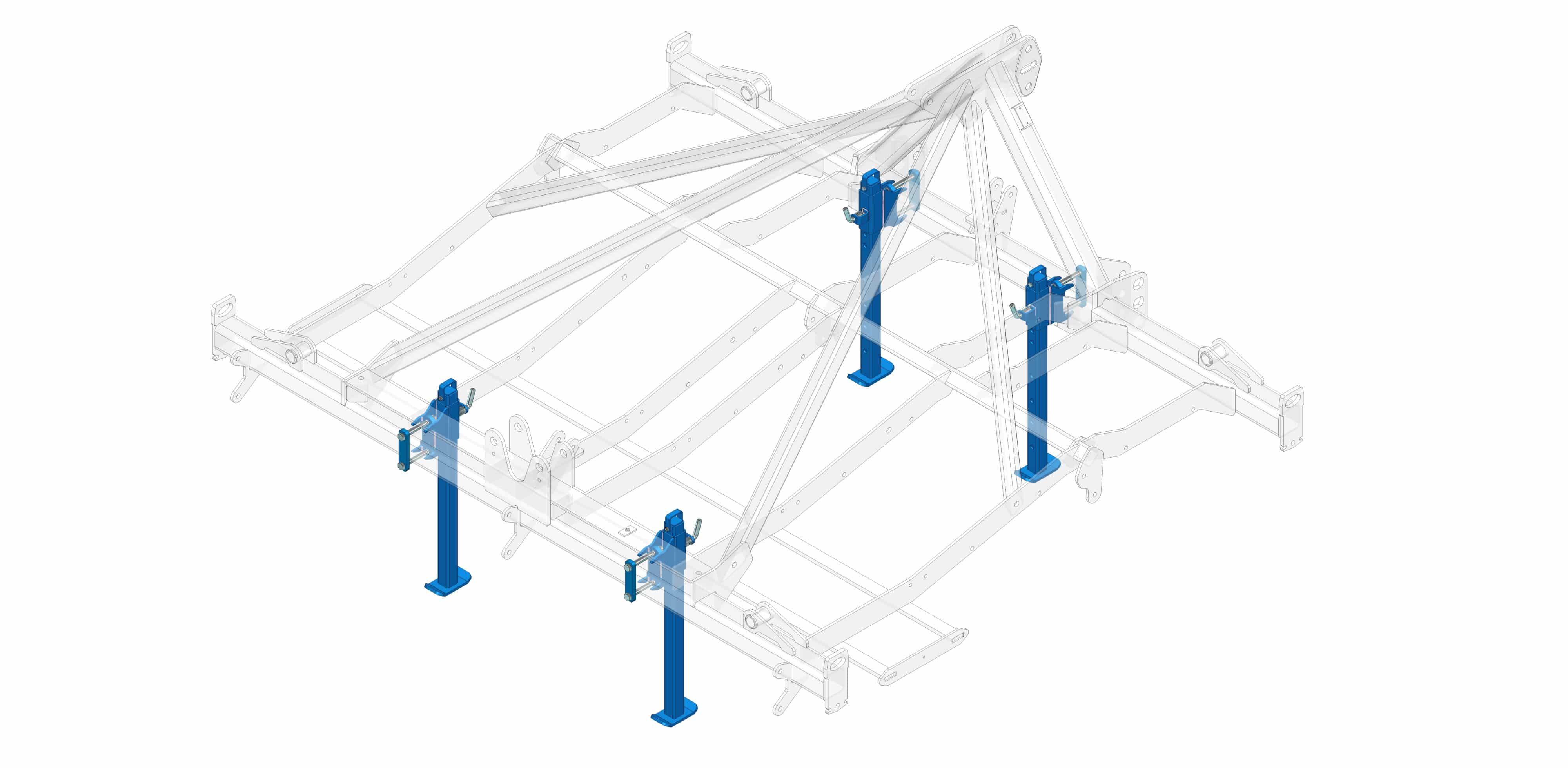

Set of 4 stands
Traceurs latéraux

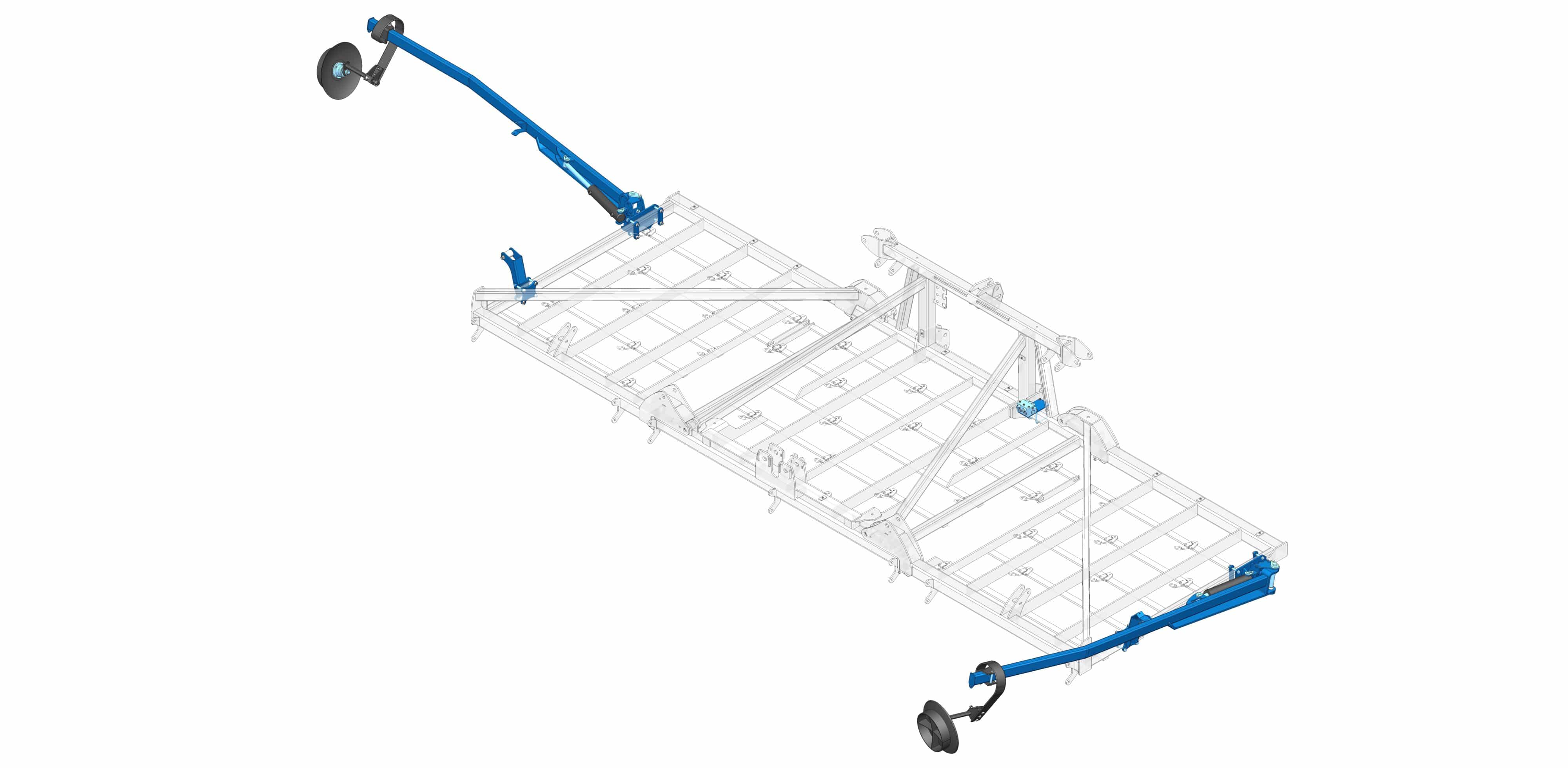

Lateral bout markers
Traceur de prélevé
Dual disk pre-emergence marker (odd rate)

Set of 4 wheel mark eradicator

Set of 4 stands

Lateral bout markers

Dual disk pre-emergence marker (odd rate)
