PENTERRA-S et PENTERRA S-F - CARRÉ manufacturer of agricultural machinery

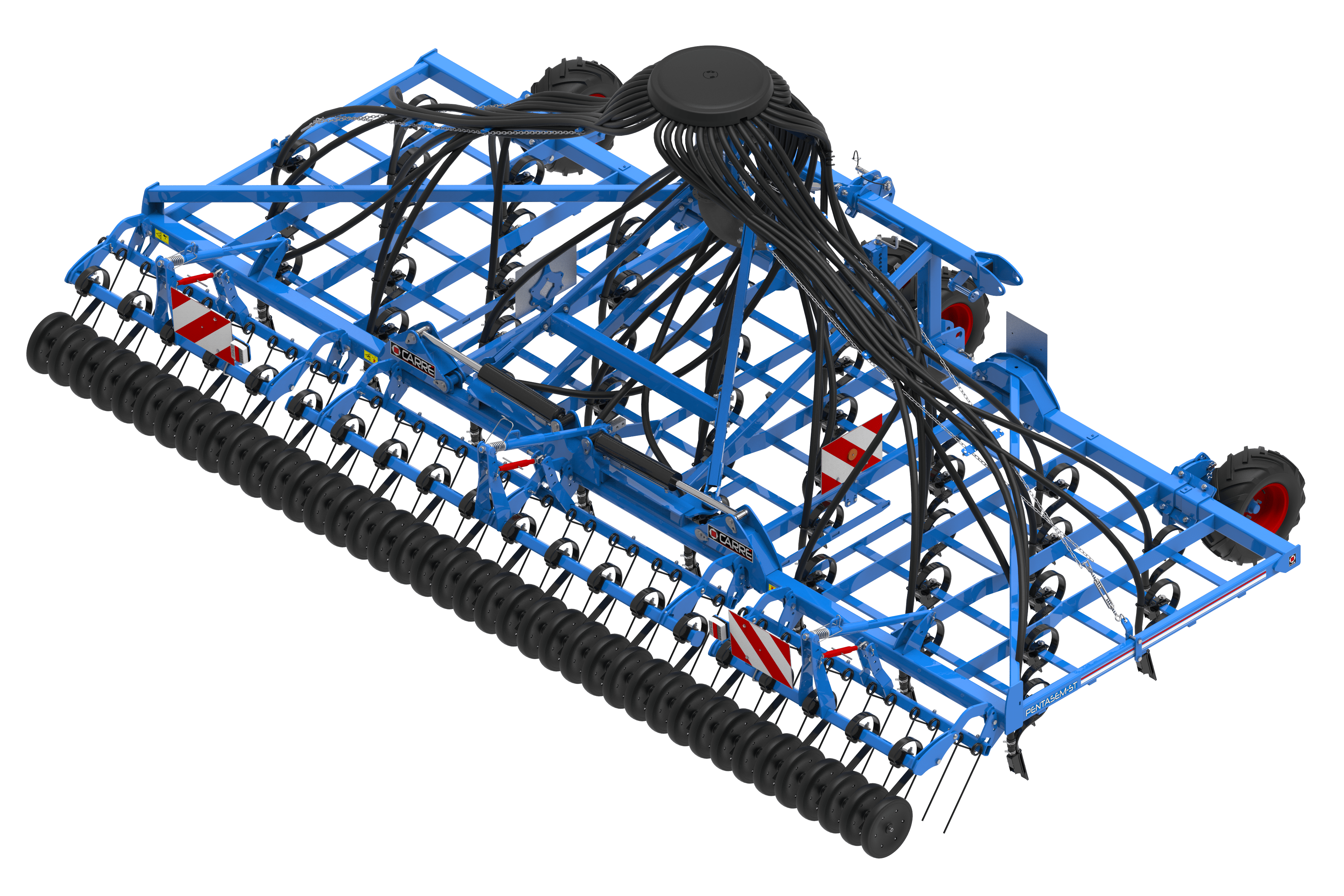

TINE SEED DRILL

Great weight repartition on tractor to minimise soil compaction !

PENTERRA-S and PENTERRA-SF benefit from a great weight repartition to minimise soil compaction.
The 5 lines chassis allow to seed in hard conditions and with a huge quantity of residues.
The 80×12 tines with counter-spring offer a large clearance (650 mm) under the frame and allow a good placement of the seed thanks to their right ploughshare.

Available from 4 to 7m !

See specifications

THE FRAME

3 point linkage between clevis N°3 – Pin N° 2/3
Welded double rectangular tube 180×180 frame
5 tines carrying beams square tube 70, and bracket thickness 10 mm

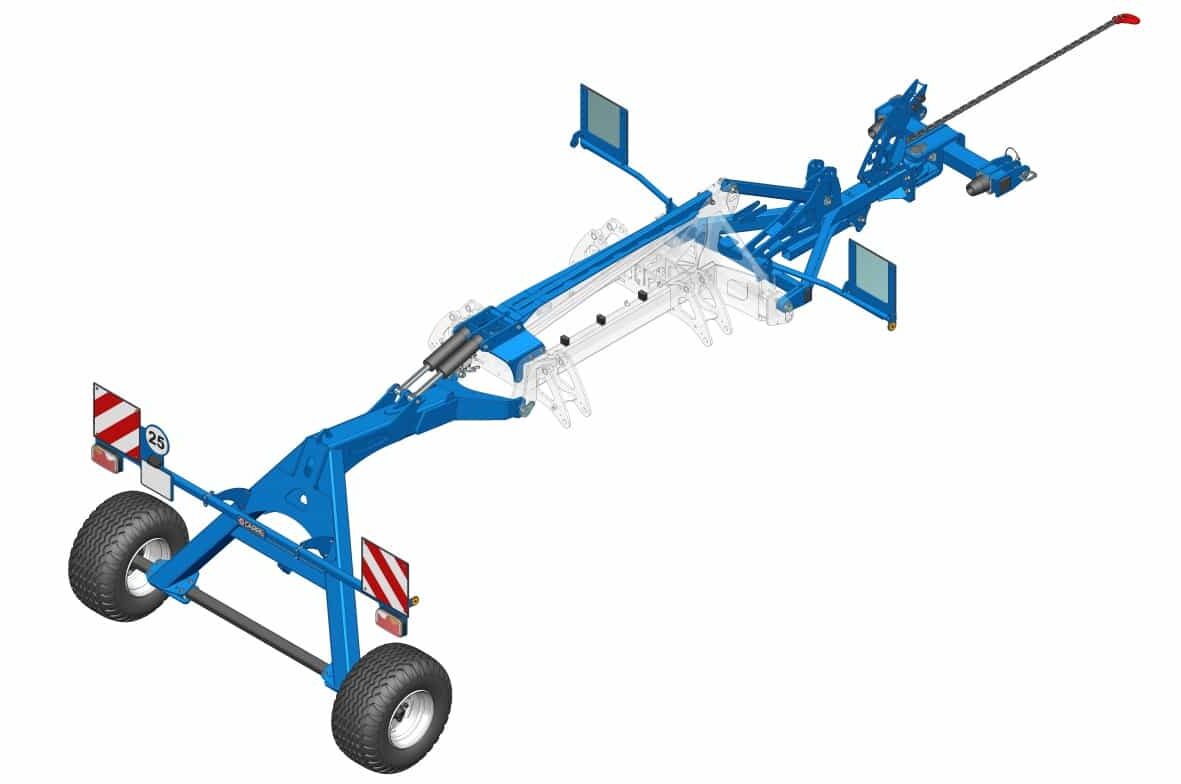

Hydraulic folding to 3 m using 4 double acting cylinders with a hydraulic safety mechanism
Support and spreader head with 4 electric calibration valves not connected.
Simple pair of wheels tyre Ø584×236 with mechanical adjustment / 4 and 5m model

Double pair of wheels tyre Ø584×236 with mechanical adjustment / 6m model
Road light and signals included
Front tank not provided
Important:
in standard, the Penterra S & SF will be delivered for a 1.90m tractor’s track and a treatment width of 28m for the version 4m, 30m for the versions 5 and 6m.
All other track’s dimension and treatment’s width must be given at the order.

Our recommandations

Widths : from 4 to 7 m

	FOLDING
Width (m)	4		5		6	7
Inter-tine spacing (mm)	125	150	125	150	150	150
Number of tines	32	26	40	34	40	46
Power requirement (hp)	160	180	180	180	200	220
Poids (kg)* PENTERRA-S	2560	2510	2780	2830	3020	3260
Poids (kg)* PENTERRA-SF	2760	2760	3080	3030	3220	3460

*Depending on equipment (average value with comb harrow and LTX roller)

Strong points

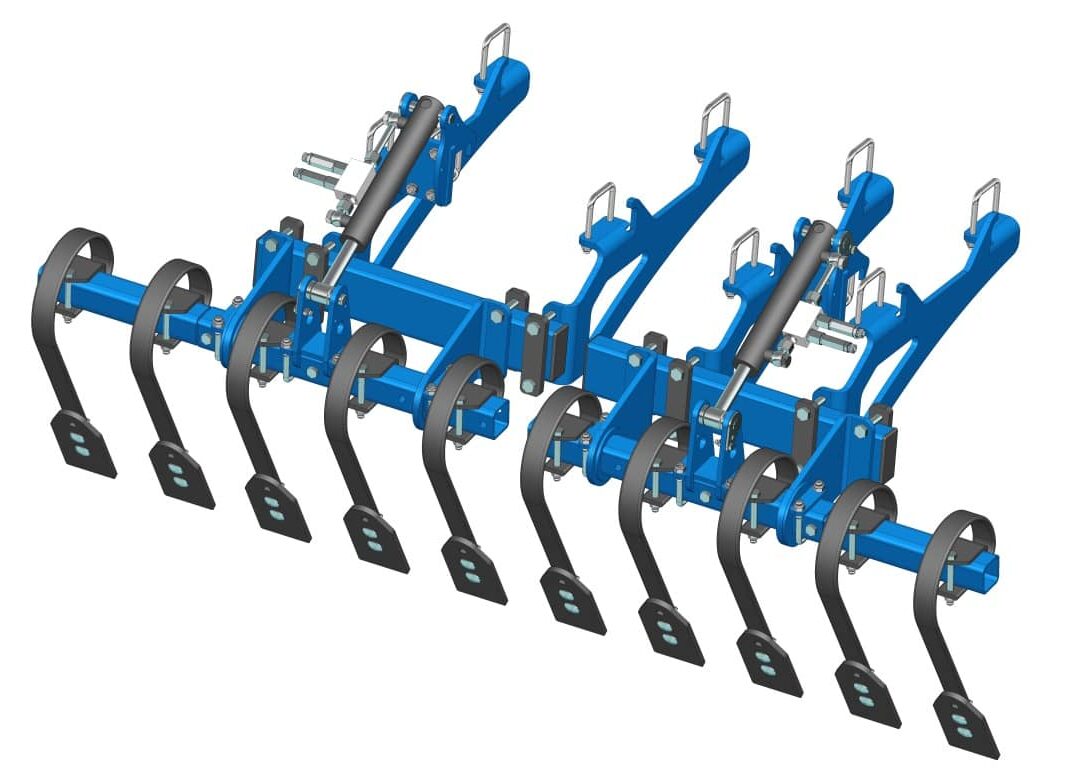

THE ADVANTAGES OF A 5-BAR CHASSIS

AN ACCURATE WORK

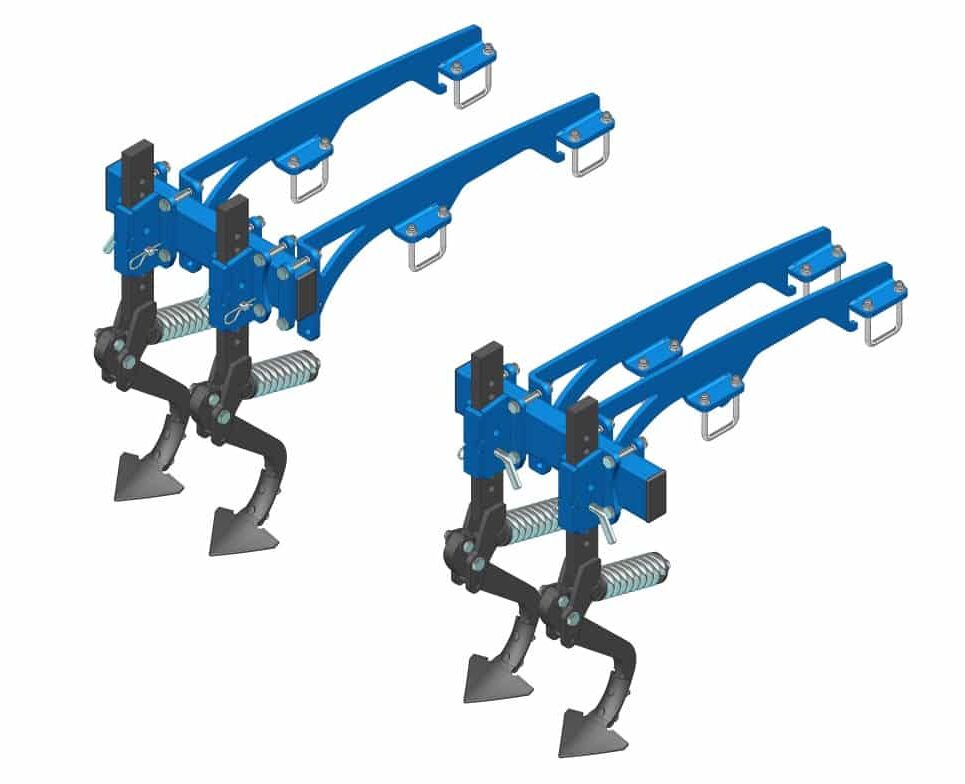

The tine with its strong section, and its cut-off spring drop seed without vibration and at a regular depth.
It is possible to adjust the implement settings both easily, and without tools

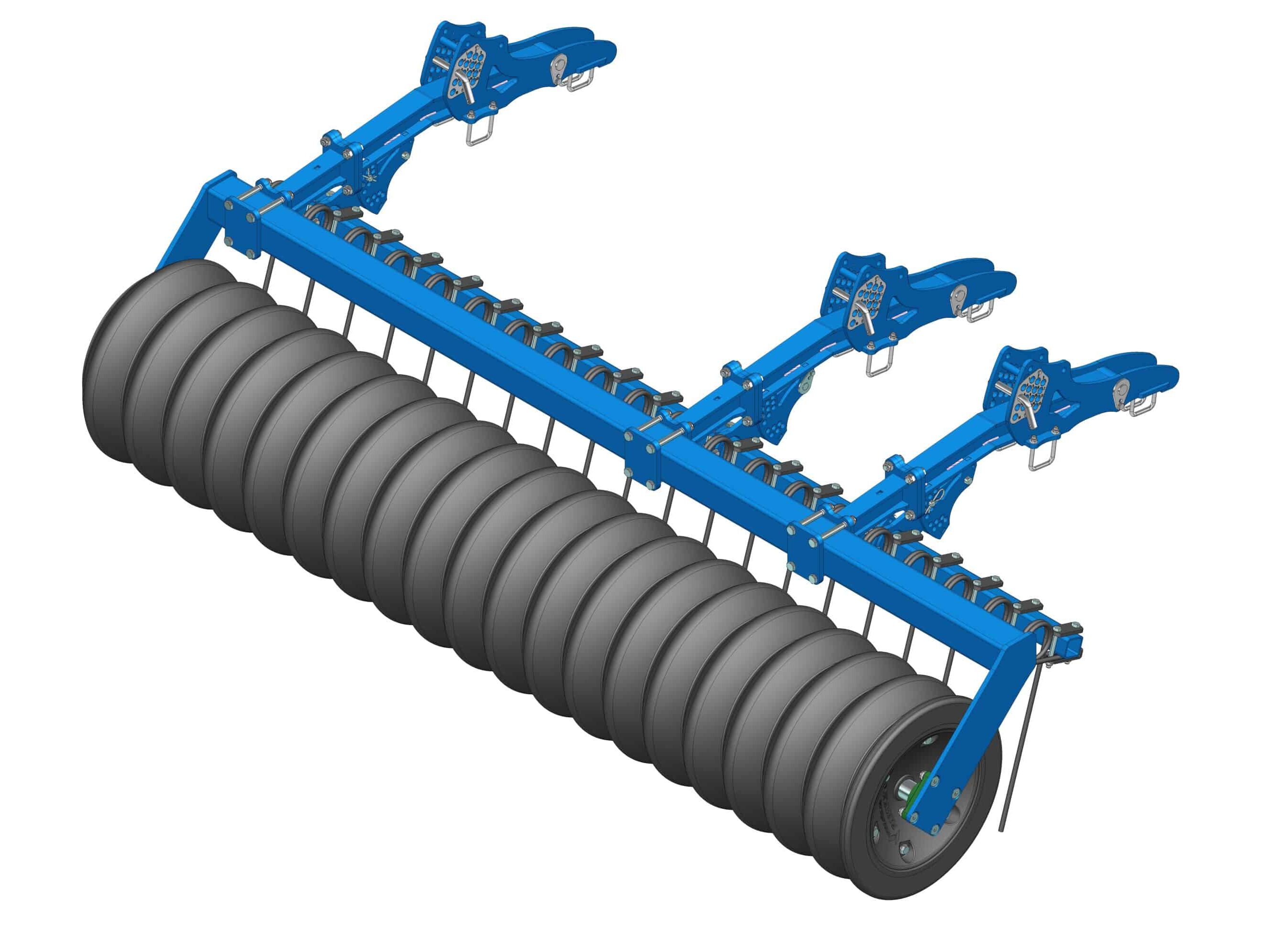

For a good finishing, opt for comb harrow and single roller LTX (see equipment)

The distribution head
