ROTARY HOE

Remove crust and high speed weed !

ROTANET has a working speed of 15 kph, eliminating emerging weed seedlings by casting them up into the air.
The small spoon-bill hoe preserves crops in place, breaks up the crust and aerates the ground down through the first centimetres.
The star wheel penetrates the ground vertically to break up the surface crust.
Thanks to its limited power needs and high working speed it can quickly work through a job.
With under chassis clearance of 650 mm, ROTANET allows working on bare earth or once the crops are growing, up to 35 cm high for corn and 20 cm for rape and soybean.

Available from 3 to 12m40!

See specifications

THE FRAME

Three-point hitch between No. 3 couplings – Pin Nos. 2/3
A dynamic single piece square section 120×5 mm beam welded chassis
Secondary square section 120×5 mm beam attached with a removable bracket
Folding articulation with thick polyamide ring.
Double folding beam from 8m with cab control unit

Hydraulically folds to 3 metres with dual hydraulic and mechanical safety mechanisms
Pair of tire wheels 10 plies Ø535x168mm with track adjustable from 1m50 to 2m15 – 2 parts from 8m
Anti-spray grille
Four parking stands
Road light and signals included

Star wheel hoe

AVANTAGES OF THE STAR WHEEL HOE

Forged steel Yetter hoe mounted on separate arms with an Ø8 mm pressure spring
Yetter Ø540 mm hoe wheel comprising 16 spoon-bill teeth
Hoe fitted on high load capacity ball bearing
Bearing protection cup
Pitch between hoes 90 mm
Alternating fitted hoes to facilitate residue flow
Mechanically welded hoe arm with maintenance-free bushes

New patented option

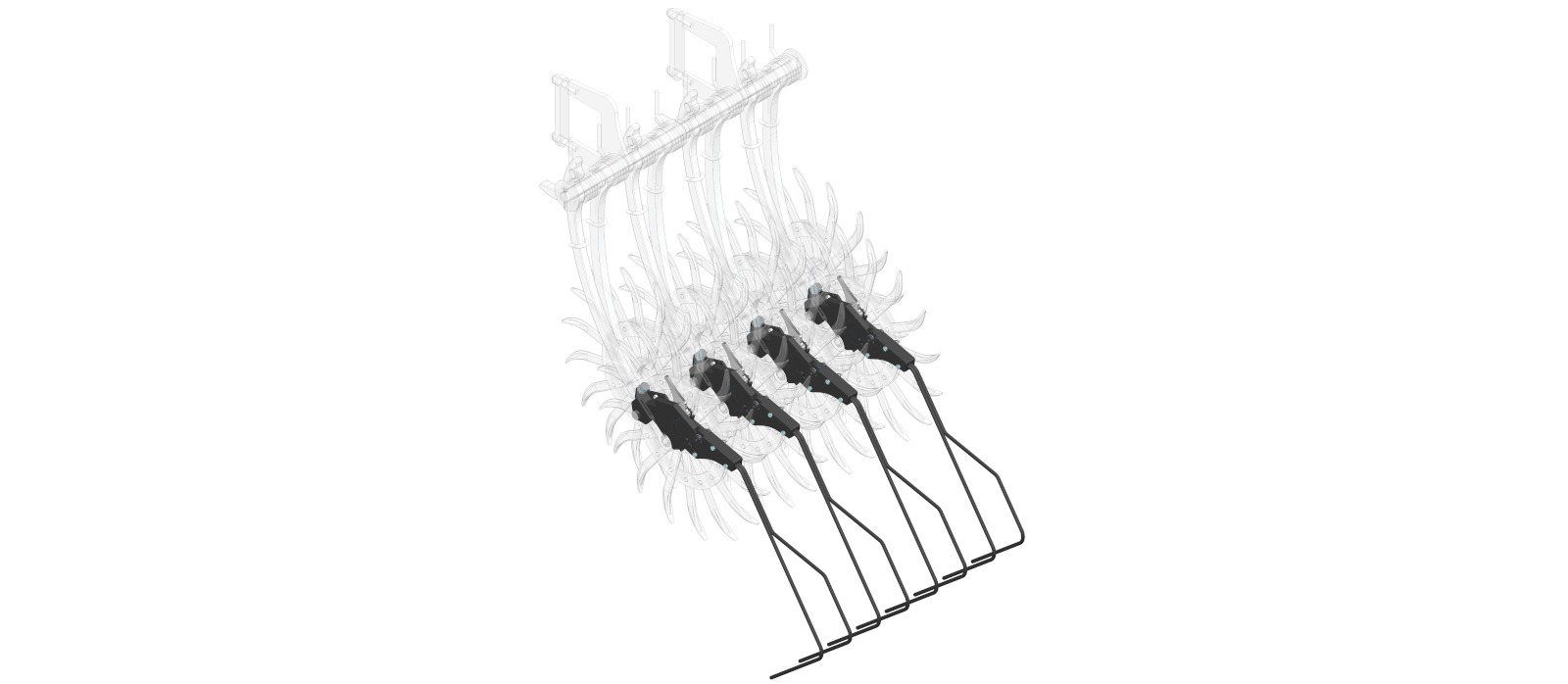

PROLINE : Combs to refine the work between hoes

Fitting on individual hoeing arm guarantees proper terrain hugging
Holder fastened to the hoeing arm to avoid damaging the crop
Comb retraction on the crop line or total width
Aggressive attack angle for proper effectiveness
Lateral comb stiffness guaranteeing localised work between the hoes

WELL FINISHED WORK

It is possible to adjust the implement settings both easily, and without tools
Maximum efficiency thanks to the original Yetter wheel that has proven itself well over more than 50 years
Optimum adaptation to ground roughness thanks to its arm mounted hoes and independent springs

Our recommandations

Widths : from 3 to 9m

	FIXED		FOLDING					DOUBLE FOLDING
Width (m)	3	3,5	4,5	5,1	6,1	6,5	7,3	8	9,1	10,2	12,4
Number of hoe wheels	32	38	50	56	68	72	80	88	100	112	136
Folded height (m)*			2,71	2,96	3,51	3,68	4,06	3,60	3,60	4	4
Power requirement (hp)	45	50	70	75	90	95	100	140	150	160	180
Weight (Kg)**	700	770	1350	1430	1620	1660	1780	2870	3030	3270	3660
