ROTARY HOE !

Break up the crust and weed with surgical accuracy!

ROTANET CONTROL allows very accurately adjusting the hoe pressure applied to the ground.

The module comprises six hoes mounted on separate arms.

The pressure on the star wheels is adjusted from the cab.

The hoe frame’s wide spread over the ground ensures very accurate working and a pressure level that is always constant.

Available from 4m80 to 10m30 !

Voir les caractéristiques

THE FRAME

Three-point hitch between No. 3 couplings – Pin Nos. 2/3
A dynamic single piece square section 120×5 mm beam welded chassis
Secondary square section 120×5 mm beam attached with a removable bracket
Folding articulation with thick polyamide ring.
Double folding beam from 8m10 with cab control unit

Hydraulically folds to 3 metres with dual hydraulic and mechanical safety mechanisms
Pair of wheels with 10-ply 535×168 mm tyres with track adjustable from 1.50 to 2.15 metres
Anti-spray grille
Four parking stands
Road light and signals included

The SPC module
(Sping Pressure Control)

THE ADVANTAGES OF THE PATENTED SPC SYSTEM PATENTED

Module with six Yetter hoe wheels and 90 mm pitch
The pressure on the ground is linearly adjusted from 18 to 29 Kg
Strip for viewing the pressure adjustment
Separate progressive winding Ø8 mm pressure spring
Individual hoe retraction using pins
Mechanically welded arm with maintenancefree bushes
Bearing protection cap
Module hoes fold away completely for transportation
Constant hoe oscillation amplitude of +/- 15 cm in relation to the worked ground level
Alternating fitted hoes to facilitate residue flow

New Patented option

PROLINE : Combs to refine the work between hoes

Fitting on individual hoeing arm guarantees proper terrain hugging
Holder fastened to the hoeing arm to avoid damaging the crop
Comb retraction on the crop line or total width
Aggressive attack angle for proper effectiveness
Lateral comb stiffness guaranteeing localised work between the hoes

WELL FINISHED WORK

Hoe ground pressure can be adjusted from the tractor cab
Allows working the full width, a row or between rows
Maximum efficiency thanks to the original Yetter wheel that has proven itself well over more than 50 years

Our recommandations

Widths : from 4,80 to 10,30m

	FOLDING				DOUBLE FOLDING
Width (m)	4,8	5,4	6,5	7	8,1	9,2	10,3
Nbr. of modules	9	10	12	13	15	17	19
Nbr. of hoe wheels	54	60	72	78	90	102	114
Folded height (m)*	2,9	3,2	3,7	4	3,8	3,8	3,8
Power requirement (hp)	90	100	110	120	140	150	160
Weight (Kg)**	1800	1900	2180	2330	3460	3760	4000

*Value when resting on the parking stands
** Without equipment and without option

THE EQUIPMENTS

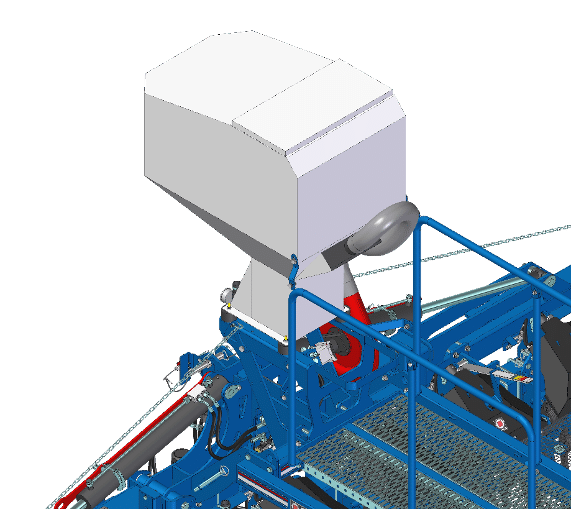

SEMLOC : SEEDER

200L hopper with splined distributor, driven by a DPA mechanical gear or a GPS-controlled unit for dosing between 2 and 100 Kg/ha.
Blower driven by 2 electric or hydraulic motors

2 dosing rollers for small and big seeds (other dosing units on request)

8 splines distribution

Nozzles positioned as close as possible to the ground at the front of the machine for uniform distribution across the entire width of the tool and to encourage seed germination

PROLINE COMBS ON HOE ARM

Refine the work between hoes

THE OPTIONS

Surface measurement kit on wheel

Hydraulic control version independent module
