WEEDING HARROW

A machine for an optimal result!

Folding at 3m to drive with serenity.
Standard or scissors folding depending on width (scissors from 9m).
SARCLERSE units feature dual tines fastened with a clip pin for quick changing.
The mounting system eliminates play (constant elastic pressure mounting) between the tine tube and the double tine.
The clip is held tightly against the tube due to the constant tine pressure, which guarantees that the tines are well held.
Spacing between tines : 25mm. 3 models of tines adapted to your crops: Ø7mm compact tines (L=430mm) or Ø7mm long tines (L=530mm) or Ø8mm standard tines (L=530mm) depending on the type of crops and soil Manual or hydraulic adjustment of the tines aggressiveness.

Available from 1.50 to 12 m in carried version !

See specifications

Hydraulic and mechanic locking safety (transport and work position)
Tine quick change ! Fixation with R clips. Manual or hydraulic adjustment of the tines aggressiveness. rapide des dents ! Fixation par goupille clips Réglage de l’agressivité des dents manuel ou hydraulique.

A demonstration ?

Make a request

The documentation

Download the documentation

Our importers

View the map

The product notice

Download the notice

Spare parts

Discover

Find your machine’s registration number in the instruction manual, or on the number plate affixed to the machine:

38022060 > SARCLERSE FIXE

Download the notice

38022070 > SARCLERSE REPLIABLE

38018202 > SARCLERSE

Download the notice

THE FRAME

3 point hitch with anti-rotation pin category 2/3
Welded single piece frame – tube 100×5 mm and 100×8 mm
Folding articulation with thick polyamide ring.
Folding to 3 m

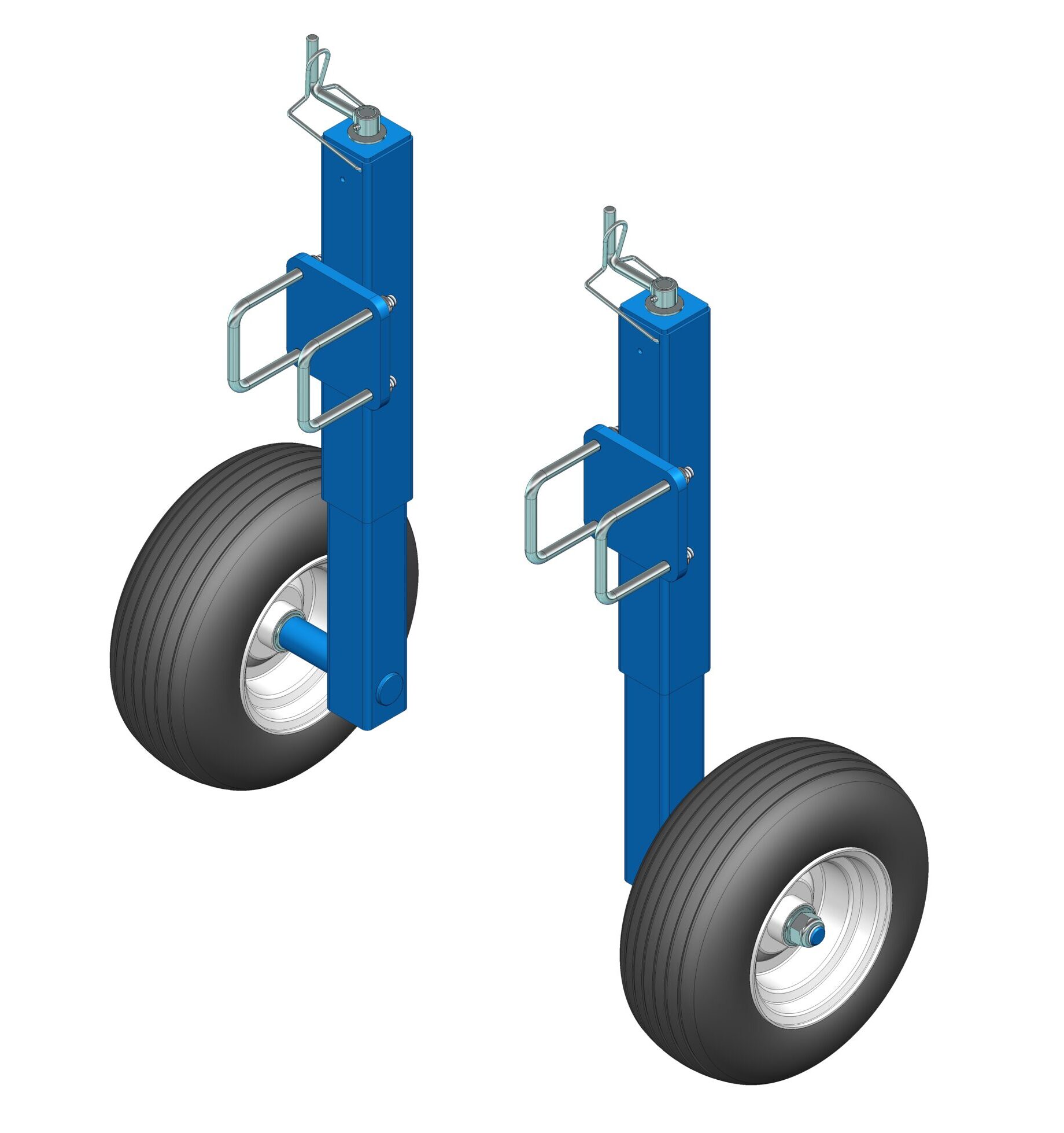

Depth control wheels 16×6.50-8 (Ø 410x170mm) up to 7.50m and 18.5×8.50-8 (Ø460x220mm) from 9m
Ø7mm tines length 430 or 530mm or Ø8mm tines length 530mm
Manual or hydraulic tine attack adjustment
Signage and lighting included except on the 1.50 m model

WELL FINISHED WORK

It is possible to adjust the implement settings both easily, and without tools
Manual or hydraulic adjustment of the tines aggressiveness.

Two types of folding

From 9 m: scissor folding in order to reduce transport height.

Standard folding

Scissor folding

Our recommandations

Widths : from 1,5 to 24m

	FIXED			STANDARD FOLDING				SCISSOR FOLDING
Width (m)	1,50	3	4,50	4,50	6	7,50	9	9	12
Folded height (m)				1,45	2,20	2,95	3,70	2,50	3,25
Number of sections	1	2	3	3	4	5	6	6	6
Number of tines	30	60	90	90	120	150	180	180	240
Number of fingers	60	120	180	180	240	300	360	360	480
Number of wheels	2			2	2	4	4	4	4
Power requirement (hp)	15	25	35	35	50	60	80	80	90
Weight (kg)*	290	290	544	586	636	837	1100	1212	1500

*Depending on equipment

THE EQUIPMENTS

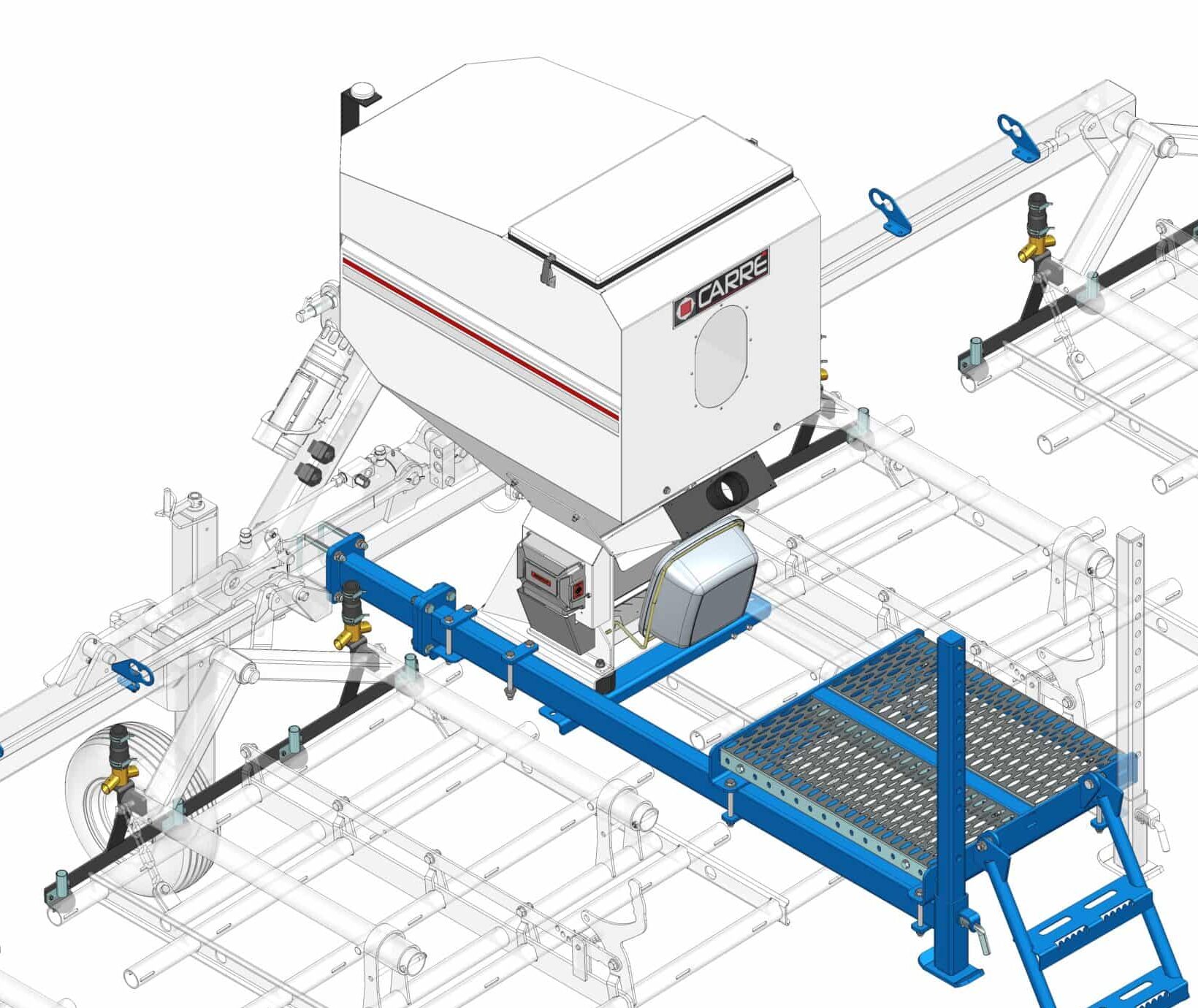

200L or 400L hopper with fluted distributor, driven by mechanical DPA wheel or GPS, for dosages from 2 to 100 kg/ha.
Pneumatic distribution with electric blower up to 6m or hydraulic.
Access footbridge to hopper.

2 volumetric metering rollers for small and large seeds

8-spline distributor

Nozzles positioned as close as possible to the ground at the front of the machine for uniform distribution across the entire width of the tool and to promote seed germination.

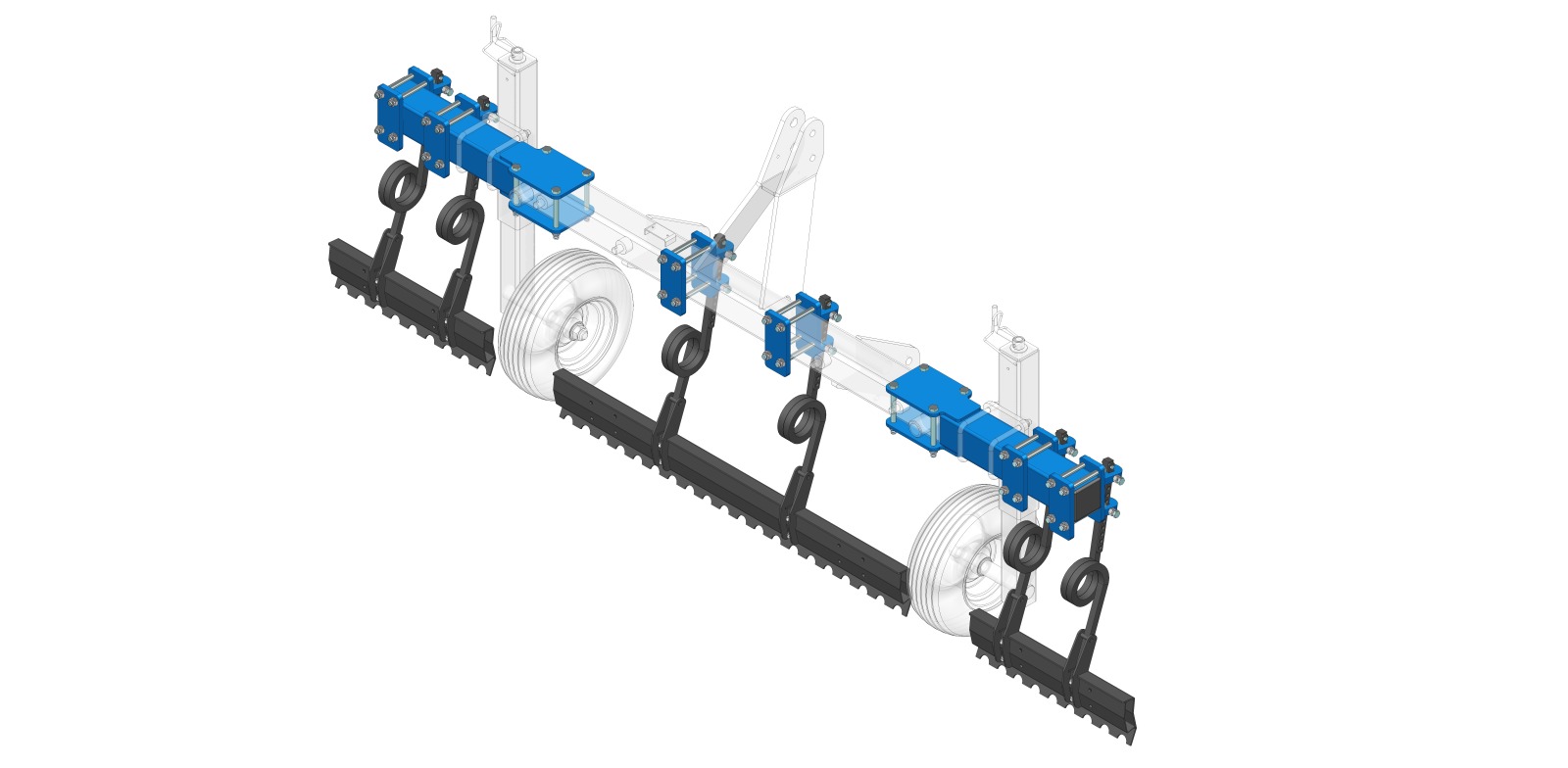

LEVELLING BOARD : MAKE THE MOST OF YOUR PASS-BY LEVELLING YOUR LAND !

Independant notched blades, mounted
on square tine (20mm) for rigidity and
maximum aggressiveness on surface
Fastened directly on the chassis of
SARCLERSE 3m, 4m50, 6m and 9m in
standard folding

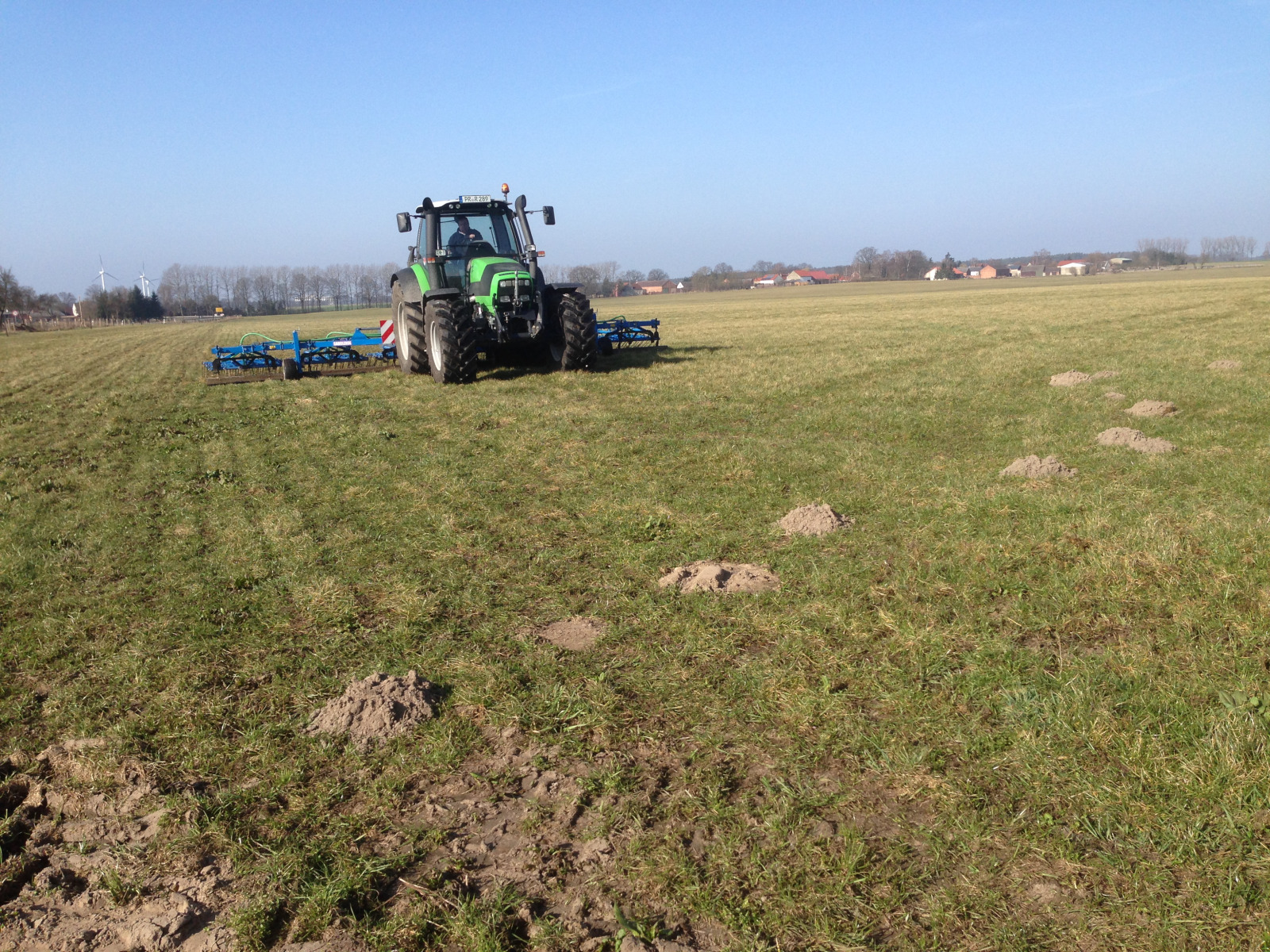

BEFORE

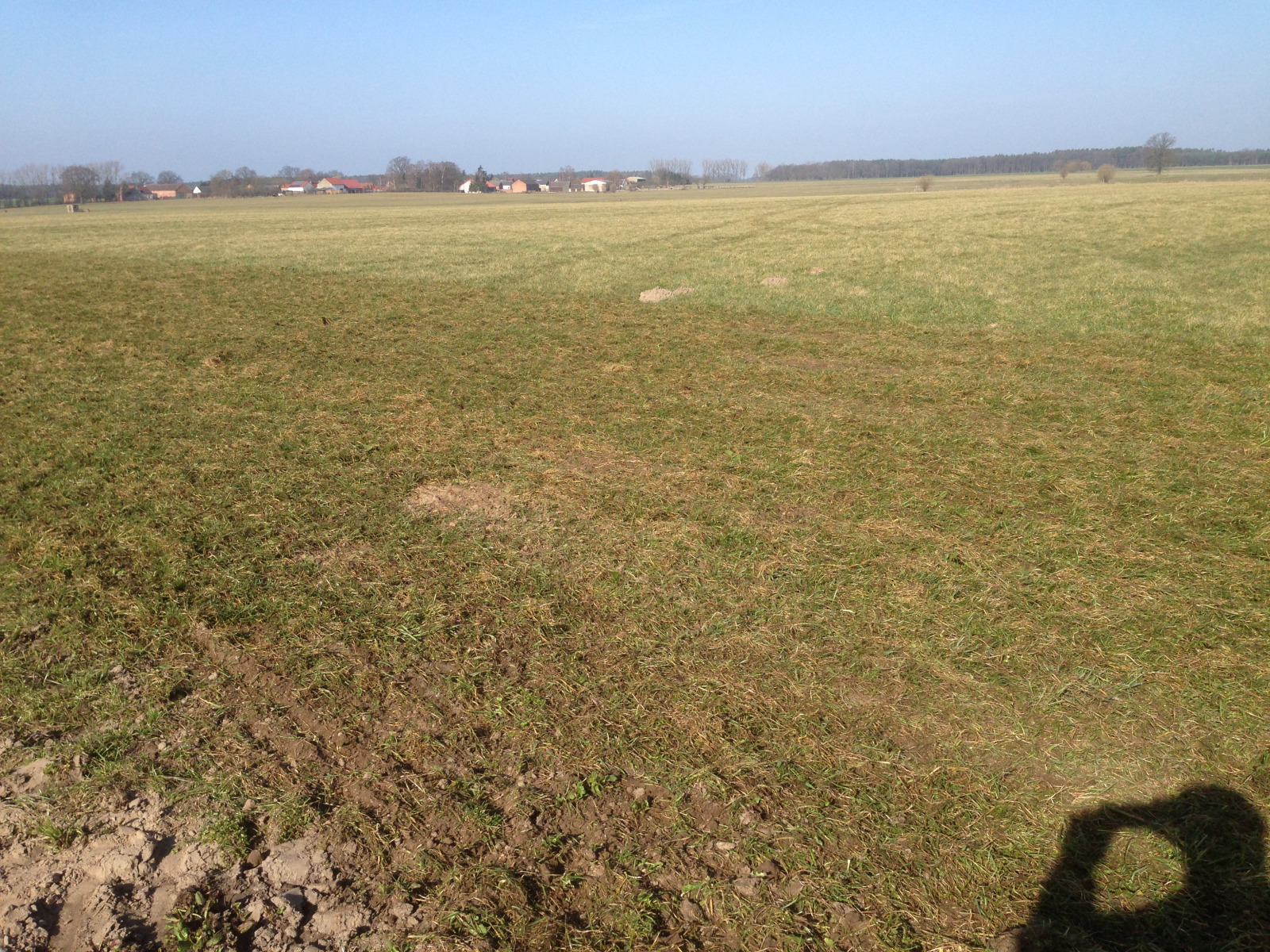

AFTER

THE TINES

Rapid tine changing!

The mounting system eliminates play (constant elastic pressure mounting) between the
tine tube and the double tine.
The clip is held tightly against the tube due to the constant tine pressure, which guarantees that the tines are well held.
