WEEDING HARROW

Perfect soil monitoring in all conditions!

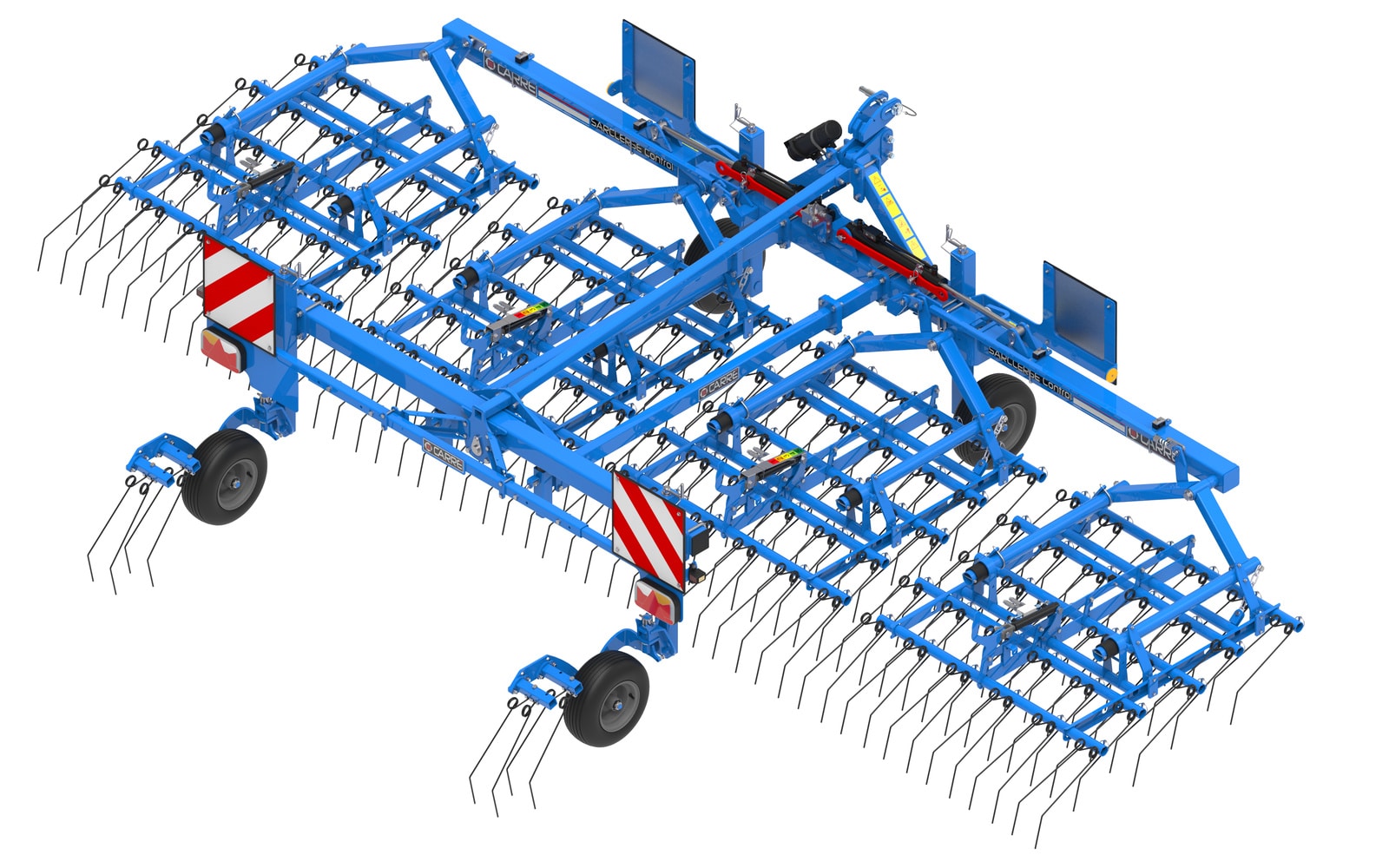

The SARCLERSE CONTROL combines all the benefits of the standard SARCLERSE with a contour following system improved by a swivelling rear axle.
The latter allows operating a spiked harrow which follows the ground profile accurately to guarantee stable adjustment of the teeth in all conditions.
The hydraulic tine angle adjustment, from the tractor cab, is integrated to SARCLERSE CONTROL for better working comfort and fast adaptation to heterogeneous plots.
Ø7mm compact tines (L=430mm) or Ø7mm long tines (L=530mm) or Ø8mm standard tines (L=530mm) depending on the type of crops and soil.

Available in 6, 9 and 12m in carried version!

See specifications

THE FRAME

Three-point linkage with anti-rotation pins category 2/3 with upper floating shaft
One-piece mechanically welded frame in 100x5mm and 100x8mm tubes
Folding joint with thick polyamide bushes
Folding to 3 m
Hydraulic locking of extensions on scissor folding chassis
Compact tine Ø7mm (L=430mm) or long Ø7mm tine (L=530mm) or long Ø8mm tine (L=530mm)

Tine angle hydraulic adjustment
4 topsoiling wheels at the front and 2 rear wheels on swivel frame dimension 16×6.50-8 (Ø410x170mm) up to 6m and 18.5×8.50 (Ø460x220mm) from 9m
Trail breaker combs at the back of the 2 swivel wheels
Road light and signals included

AN OPTIMISED RESULT

Floating linkage with 6 front / rear control wheels
Tine attack adjustment from the tractor cab

Two types of folding

From 9m: scissor folding to reduce transport height.

Standard folding

Scissor folding

Our recommandations

Widths : from 6,9 to 12m

	STANDARD FOLDING	SCISSOR FOLDING
Width (m)	6	9	12
Folded height (m)	2,2	2,5	3,25
Number of elements	4	6	8
Number of tines	120	180	240
Number of fingers	240	360	480
Number of wheels	6	6	6
Power requirement (hp)	60	80	90
Weight (Kg)	820	1310	1640

THE TINES

Rapid tine changing!

The mounting system eliminates play (constant elastic pressure mounting) between the tine tube and the double tine.
The clip is held tightly against the tube due to the constant tine pressure, which guarantees that the tines are well held.
