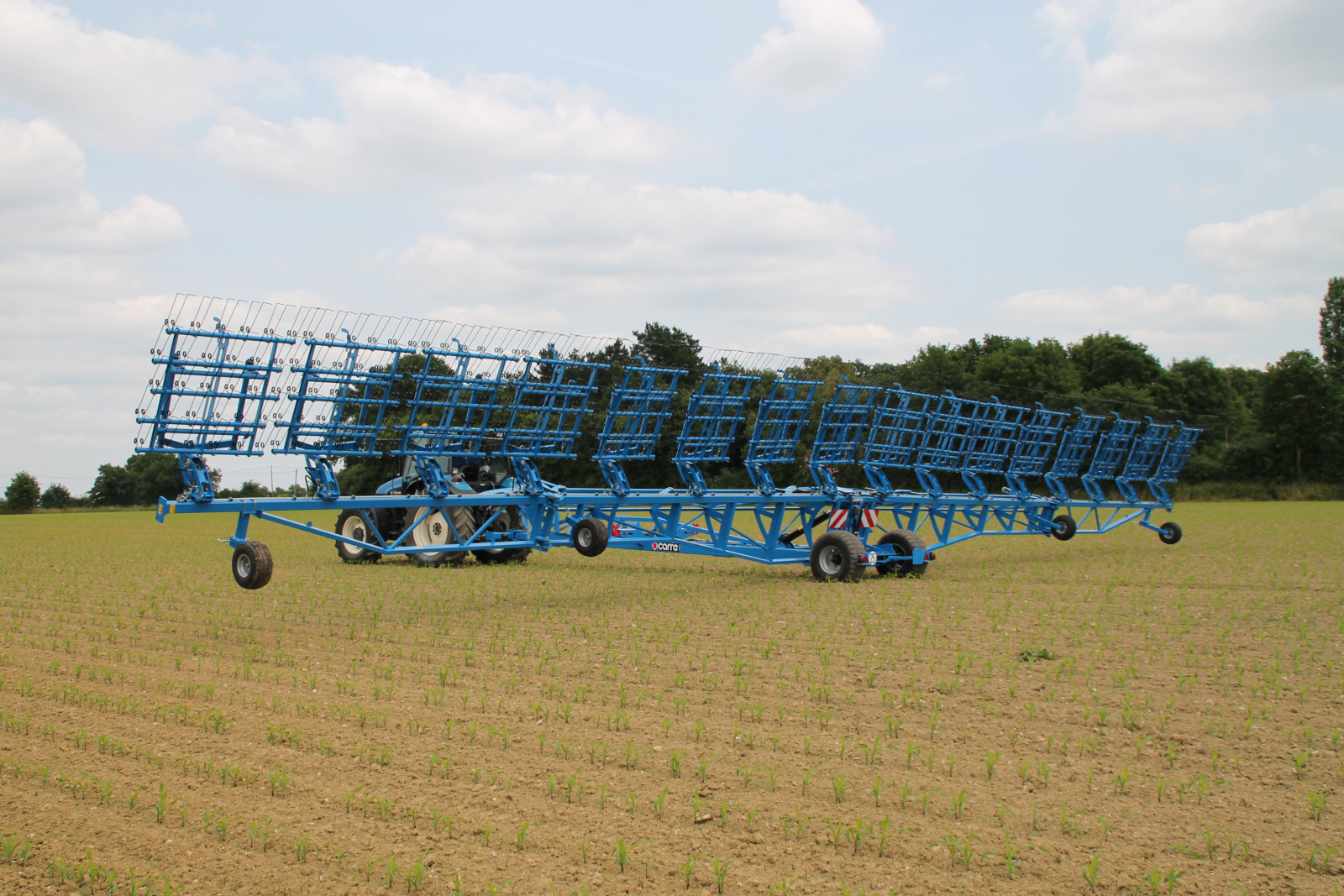

WEEDING HARROW

A machine for an optimal result !

Folding at 3m to drive with serenity.
Standard or scissors folding depending on width (scissors from 9m).
Sarclerse are equipped of double tines adapted to your crops and fixed by R clips for a tine quick change.
The mounting system eliminates play (constant elastic pressure mounting) between the tine tube and the double tine.
The clip is held tightly against the tube due to the constant tine pressure, which guarantees that the tines are well held.
Spacing between tines : 25mm. Ø7mm compact tines (L=430mm) or Ø7mm long tines (L=530mm) or Ø8mm standard tines (L=530mm) depending on the type of crops and soil.
Manual or hydraulic adjustment of the tines aggressiveness.

Available from 15 to 24m !

See specifications
  • PROCESSUS PEINTUREHydraulic and mechanic locking safety (transport and work position)
  • TRACTEURTine quick change ! Fixation with R clips. Manual or hydraulic adjustment of the tines aggressiveness.
TRACTEUR
A demonstration ?
Make a request
The documentation
Download the documentation
Our importers
View the map
notice
The product notice
Download the notice
Spare parts
Discover

Find your machine’s registration number in the instruction manual, or on the number plate affixed to the machine:

notice
38018202 > SARCLERSE TRAINÉE
Download the notice
notice
38022075 > SARCLERSE TRAINÉE
Download the notice
  • 2-point hitch with category n°2/3 anti-rotation pins
  • 180x100x10 mm and 100×5mm tube transport frame
  • Folding to 2.7m
  • Axle track variable from 1.7m to 2.25m with 400-60×15.5 wheel (Ø870×400mm)
  • Automatic, sequenced folding/unfolding system with hold-to-run button
  • Ground wheels 18.5×8.50-8 (Ø460x120mm) 1 pair on 15m model and 2 pairs on 18, 21 and 24m models
  • Folding joint with treated steel ring
  • Ø7mm compact tooth (L=430mm) or Ø7mm long tooth (L=530mm)
  • Signage and lighting included

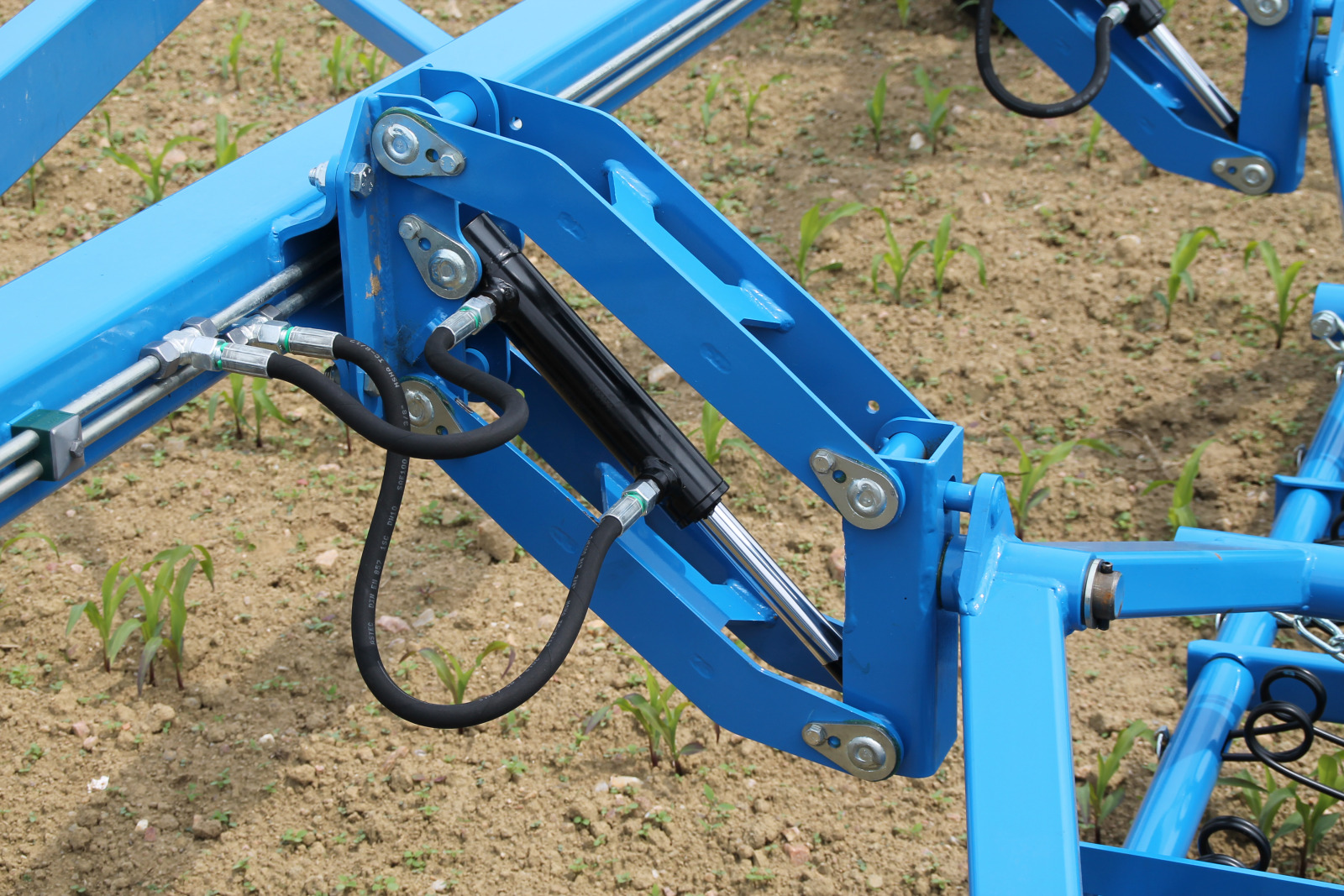

Sections independently mounted on parallelograms
Automatic lifting sequence at the end of a bout
Constant pressure over the whole width

A double acting spool valve for all the hydraulic functions

Our recommandations

Width (m)15182124
Folded height (m)3,703,70
Number of sections10121416
Number of tines300360420480
Number of fingers600720840960
Number of wheels24
Power requirement (hp)110120130150
Weight (kg)*3500380041004700
* Depending on equipment

Rapid tine changing!

The mounting system eliminates play (constant elastic pressure mounting) between the
tine tube and the double tine.
The clip is held tightly against the tube due to the constant tine pressure, which guarantees that the tines are well held.

Wheel mounted area meter

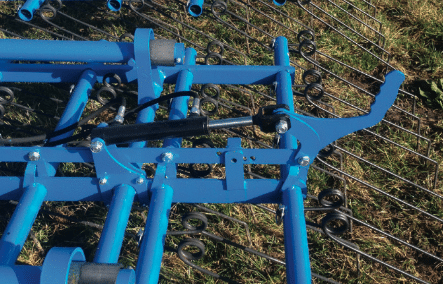

Hydraulic tine adjustment
