A precision scalper URASI !

URASI: The winning bet in any field !

A precision scalper that is ideal for surface stubble removal

The URASI precision scalper fits into the process of regenerative agriculture and ground conservation so as to rebuild the organic matter by restoring the biodiversity of degraded ground.

URASI:

• Contributes to regenerating/rebuilding ground and their fertility by increasing the production of organic matter,

• Increases the percolation and retention of water by the ground as well as the purity and cleansing of run-off water,

• Preserves biodiversity and ecosystem health and resilience,

• Compensates for the profound legacy of net CO2 emissions into the atmosphere from conventional agriculture by significantly returning carbon to the ground.

• Allows developing a vertical ground structure that will encourage in-depth soil aeration, improved water absorption and a significant reduction in surface hydromorphy that is detrimental to proper crop development.

Available from 4m30 to 6m !

See specifications

Hydraulic locking safety device (transport and work)
Independent height adjustment of the front and rear control wheels ensures constant working depth of the plowshares for uniform work along the entire length of the machine.

A demonstration ?

Make a request

The documentation

Download the documentation

Our importers

View the map

The product notice

Find your machine’s registration number in the instruction manual, or on the number plate affixed to the machine:

Download the notice

Spare parts

Discover

Download the catalogue voucher
(This can be found in the instruction leaflet)

38024300 > URASI

Download the documentation

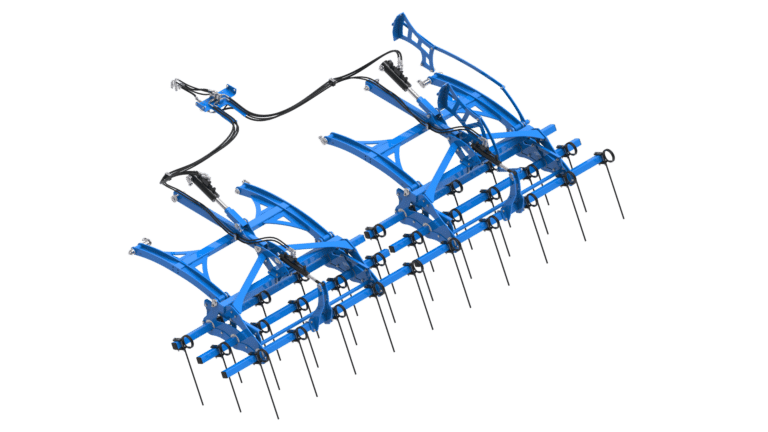

THE FRAME

Three-point hitch between clevis Nos. 3/4 – Pin Nos. 3/4 – antirotation function – lit third point for no play and ensuring compliance with the ISO 730 tractor hitch standard.
A double 180×80 mm rectangular tube welded frame: cannot develop any play and its stiffness guarantees long service life for the complete assembly.
Four square 70 mm tines carriers made from high tensile steel ensures chassis strength suited to intense use.
Four parking stands built-into the extensions, two in front and two at the rear: no fall hazard, ensuring good stability.
Two cylinders at the front and two at the rear for folding the extensions: spreads the loads to limit chassis flexing and guaranteeing high durability.

Hydraulic retraction to 3 metres in two parts with hydraulic safety features ensuring comfort and safety
Levellers behind the last row of tines with three possible positions: adapt to specific conditions.
One pair of wheels at the front and two pairs at the rear, size 584×236 mm, with separate hydraulic adjustments: even adjustment is guaranteed on all of the wheels to obtain a continuous accurate adjustment.
Indicators and lights are included in line with CE standards

Our recommandations

Widths : from 4m30 to 6m

	FOLDING FRAME
Width (m)	4,30	5,30	6
Inter-tine spacingb (mm)	170	170	170
Number of tines	25	31	35
Power requirement (hp)	150	160	180
Weight (kg) *	3010	3230	3450

* Depending on equipment (value with a comb harrow on three bars

Strong points

Surface working depth starts from 3 cm

Eliminates rape seed regrowth

Eliminates straw stubble

Eliminates weeds + self-seeding

The URASI precision scalper is a tool that meets environmental transition goals and the desire to progressively end the use of phytosanitary products.

URASI is highly effective for scalping straw or generating selfseeding without upsetting the ground’s organic structure.

The URASI precision scalper allows achieving a high level of in the ground, maintaining biodiversity, preparing covering crop planting and green manure (intermediate energy crops, nitrate-fixing intermediate crops), while reducing or eliminating the use of crop protection products.

WELL FINISHED WORK

4 rows of tines

Folds into two parts

Three-part single unit design, fully welded construction

A third hitching point in fixed or floating position

LED indicators and lights

Three wheels per extension

Retractable levellers

CONTROL BOX

A single controller is needed for all of the hydraulic adjustments (wheels + three rows of combs).

WELL FINISHED WORK

Control over the working depth is fully managed by the separately adjustable front and rear control wheels with a floating link at the third point level. Consequently, the machine remains stable and the working depth remains constant even at high speed. Straw and weed elimination is optimised thanks to the triple row of combs at the rear. Tine working depth range: 3 to 8 cm at a speed of 12 kph.
