For users with large acreages and wide seed drills.
You can offer them the weeder that meets their needs.
These trailed machines are approved for road use by the DREAL.
Our guidance systems are also available on trailed versions.
Available from 16 to 24 rows!
Available with Integrated Guidance System SGI
Find your machine’s registration number in the instruction manual, or on the number plate affixed to the machine:
Transport position
Working position
| Number of rows | Spacing (cm) | Recommended elements | Power (Hp) | Weight (Kg)* |
| Sugar beet | ||||
| 24 | 45-50 | E ou I | 180 | 3700 à 4000 |
| Maize | ||||
| 16 | 75-80 | L ou B | 180 | 3600 à 3800 |
The hoeing element guarantees a constant working depth over the whole width of the cultivator
thanks to the amplitude of oscillation of its parallelogram and its independent grounding wheel.
Robust and maintenance-free design, it adapts to all row crops using its quick setting systems. A wide choice of tines and options to insure an efficient and accurate work.

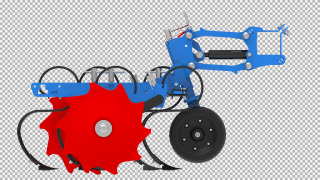

LIGHT WEEDER ELEMENT: ALL CROPS
2 hydraulic lifting versions
Version with 23cm horizontal raising from the work position
Version with 52cm vertical raising from the work position
Clearance under chassis 60 to 75cm. For use at a grown crop stage.
ELEMENT E
For inter-rows spacing from 45 to 60cm
Versatile on all type of soils
3 tines 32x12mm
Triangular ploughshare 150mm
Several ploughshare width in option
ELEMENT I
For inter-rows spacing from 45 to 60cm
Suitable for sandy or silt clay soil
To cut-off with accuracy
32X12 tines with adjustable rigid holder
Flat triangular ploughshare 200mm
Several ploughshare width in option
L blades right and left
ELEMENT C
For inter-row distances from 15 to 30cm
1 element for hoeing 1, 2 or 3 crop rows
To cut-off with accuracy
From 1 to 3 32×12 tines with adjustable rigid holder
Flat triangular ploughshare 200mm
Several ploughshare width in option
ELEMENT L
For inter-rows from 60 to 80 cm
Versatile on all type of soils
5 tines 32x12mm
Triangular ploughshare 150mm
Several ploughshare width in option
ELEMENT B
For inter-rows from 60 to 80 cm
Suitable for sandy or silt clay soil
To cut-off with accuracy
5 32X12 tines with adjustable rigid holder
Flat triangular ploughshare 200mm
Several ploughshare width in option
L blades right and left
ELEMENT X
For inter-rows from 60cm
To work up to 10cm depth
Suitable for hard stony soil condition
5 tines 45x12mm
Straight reversible ploughshare
Triangular shares optional – W element
Curved 32X12 tine with :
– Triangular duckfoot 70, 105,
150, 175, 200 or 250mm
– Reversible straight share
Rigid fitted 32x12mm tin adjustable with its 50 to 300mm wide triangular plough share
32×12 tine with adjustable rigid holder and right or left L blade
Large clearance 45x12mm tine with :
– Reversible straight share
– Triangular ploughshare 150, 175, 200 or 250mm
Retractable discs crop guard Ø500mm suitable for all conditions. Compatible with elements type E, L and X
Long retractable plant protector for optimal crop protection. Compatible with elements type E, L and X
Easy and precise guidance
The KIPLINE camera guides the hoe precisely with
its high definition optical system which analyses
the entire colour spectrum.
Available with dual camera.
The ground-breaking efficiency of the image processing enables crop rows to be detected even in the presence of thick weeds, guaranteeing high-quality hoeing in all conditions.
Acts very early on, as soon as the plant reaches 3cm in diameter.
Manual control joystick included
Touch-screen monitor in the cabin for
real-time monitoring of the guidance
with an integrated screen connected to the camera. The ergonomic design and ease of use of the touch-sensitive console makes it very user-friendly.
Guidance with sensors for crops with rigid stems such as maize or sunflower. Mounted directly on the interface or on the element to take information as close as possible to tines.
SPRAY KIT : Localised liquid fertilising and spraying!
Piping protection tamp over the entire machine.
Quick coupling on Ø18mm central output
Spraying over the 1 jet row
Stainless steel flat jet 40° with drip plate
Flow rate from 40 to 150 L/ha
Spraying on the 2-jet row
Stainless steel flat jet 40° with drip plate
Flow rate from 40 to 150 L/ha
Fertilisation with injector on either side of the row
St. steel strip till mounted on straight tines 38x12mm
St. steel disc Ø1 / 1.5mm with integrated anti-drip and shut-off valve
Flow rate from 80 to 400 L/ha
For FRONT HOPPER : solid fertilisation localizer
WEIGHT BALANCE AND ACCURATE DOSING !
Netline can work in the rigid or floating position on soft soil and can be retracted when required Flexible star Ø360mm 16 tines, thickness 12mmor flexible star Ø240mm 14 tines, thickness 10mm
Fitted at the back of the element for inter-row from 0.45m to Compatible with ECONET F and ECONET with pushed linkage.
Not compatible with comb option
S fitting type
Mounted at rear of unit for inter-row of 0m70 to 1m
Compatible with ECONET F and ECONET with push coupling.
Not compatible with comb option
Beam-type mounting
Ridging ploughshare 350mm
L,B & X
Soc butteur 600mm avec ailes réglables
L,B & X
Disques Ø300mm
L,B & X
NETLINE Ø360mm star for fitting on
Ø300mm disc holder
L,B & X
Dual camera
LED lights
Comb harrow in the inter-row
Comb harrow on the row
Adaptation for combination
of discs Ø300mm and comb harrow
Comb lowering kit if XL element
Surface measurement kit on wheel
Deflector for L blade
I & B
Ø300mm diameter opening discs
Pressure spring kit
Hydraulic lifting of horizontal hoe
elements
Hydraulic lifting of vertical hoe
elements
Transport wheels for Wide width ECONET GL
