XENOS HD - CARRÉ manufacturer of agricultural machinery

CULTIVATOR WITH DISCS

A polyvalent tool, limiting using cost (fuel consuming) & maintenance.

XENOS HD is a polyvalent tool, limiting using cost (fuel consuming) & maintenance.

It allows to work at depths from 5 to 15 cm in the presence of important organic debris without risk of jamming.
XENOS HD is provided with notched discs (Ø510mm ou Ø610mm) to work in the most difficult conditions. Those discs provide a large under beam clearance respectively from 800 mm and 900 mm to work even with a large quantity of residues Each disc is mounted on an independant arm with 100 % sealed hubs and oversized bearings to absorb efforts. Each disc has a rubber shock absorber to provide elasticity.

Each rubber shock absorber has stops to be maintain despite vibrations.

Available from 3 to 6 m!

See specifications

THE FRAME

3 point Hitch between clevis N°2/3 – Pin N° 2/3
Welded frame main tube square 300×300
Front square beam 100×100 and rear rectangular beam 200×10
2 disc carrying bars 80×80 – inter-bar spacing 1 m
Hydraulic folding at 2.50m – by 2 double acting cylinders, withhydraulic security.

Hydraulical locking and unlocking of the extension at work
A pair of parallelogram mounted lateral deflectors
Lateral levelling disc on equipment
Road light and signals included

Our recommandations

The widths : from 3 to 6 m

	FIXED FRAME				FOLDING FRAME
Width (m)	3		3,50		4		5		6
Type of discs (mm)	Ø510	Ø610	Ø510	Ø610	Ø510	Ø610	Ø510	Ø610	Ø510	Ø610
Number of discs	22		26		30		38		46
Power requirement (hp)	80 à 110	90 à 120	110 à 130	110 à 140	111 à 140	130 à 160	130 à 180	170 à 200	160 à 220	200 à 250
Weight (kg)*	1780	2055	1955	2280	2510	2885	3310	3585	3560	4135

*Depending on equipment (average value with flexible blade roller)

Strong points

WELL FINISHED WORK

It is possible to adjust the implement settings both easily, and without tools

For the best results, opt for a rear packer roller (see the equipment page)

LES DISQUES

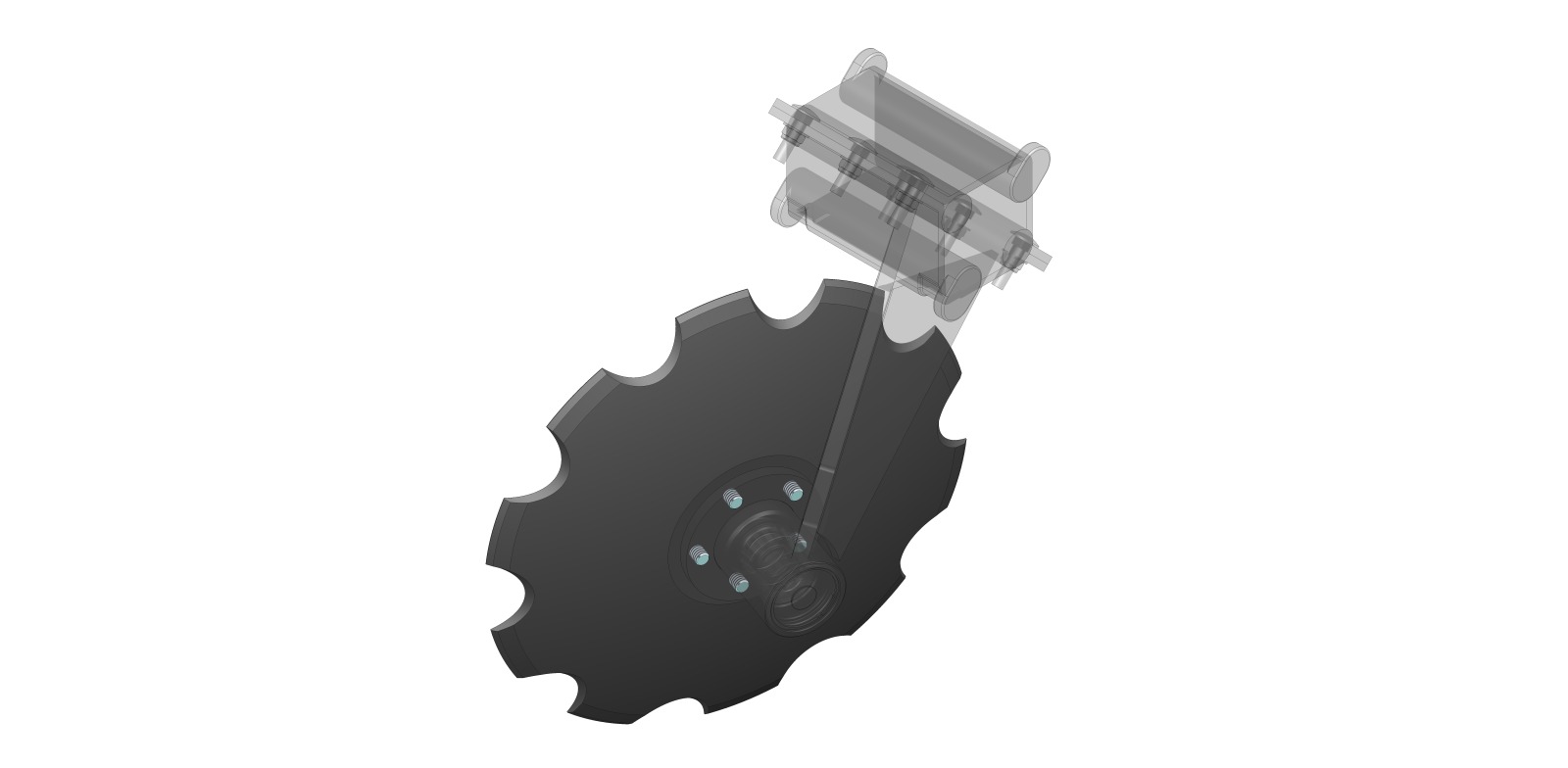

Notched discs Ø510mm, thickness 6
Assembly at 260mm on a same beam
Independent discs support
Rubber shock absorber
Sealed bearing & without maintenance
Hub taken outside the disc.
Attack angle is 17° on the travel direction and 7° on the lateral direction
Distance between two disks is 130 mm
Under chassis clearance = 800mm

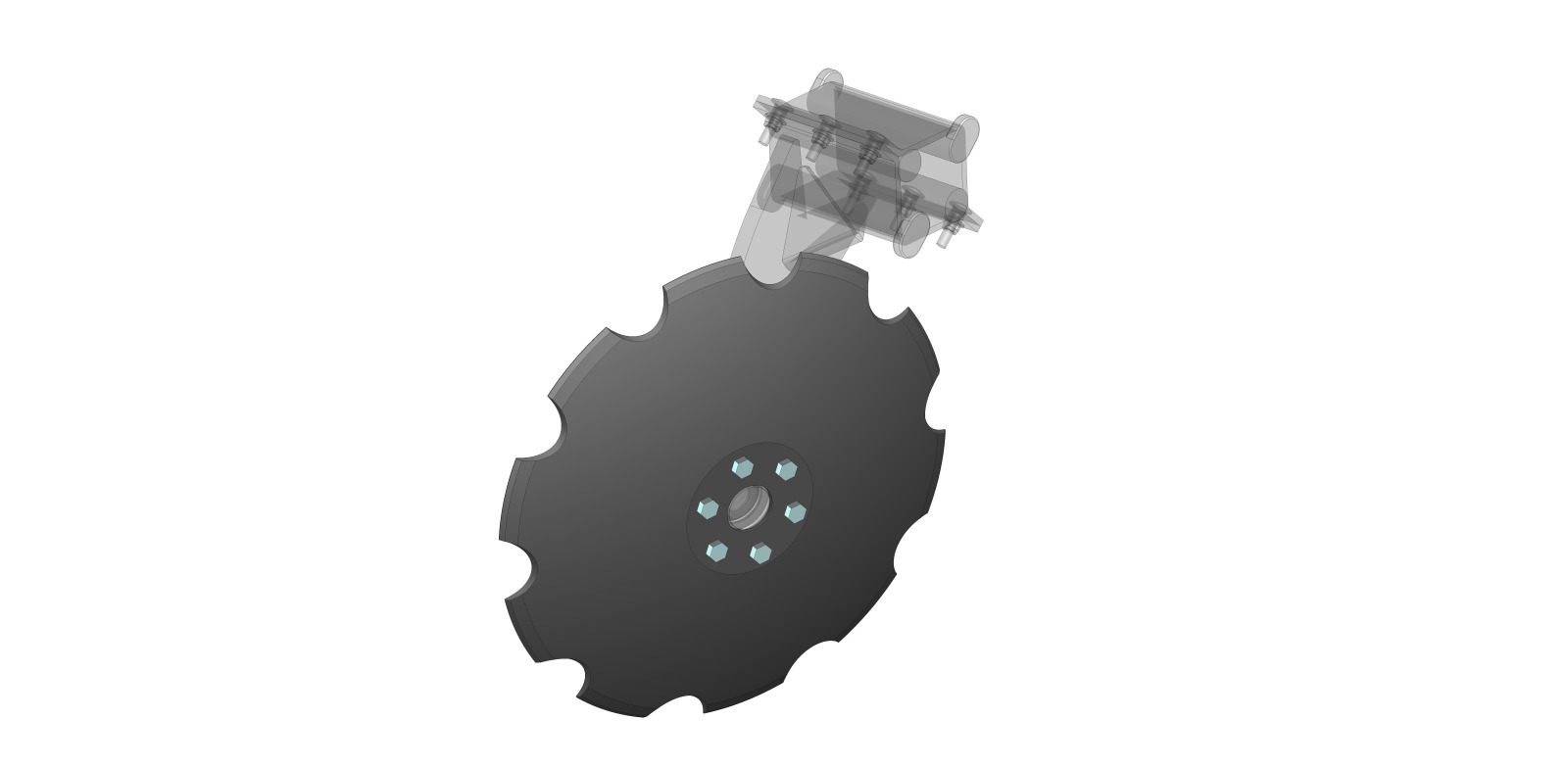

Notched discs Ø 610mm ,th. 6
Assembly at 260mm on a same beam
Independent discs support
Rubber shock absorber
Sealed bearing & without maintenance
Hub taken inside the disc.
Attack angle is 17° on the travel direction and 7° on the lateral direction
Distance between two disks is 130 mm
Under beam clearance : 900mm

THE EQUIPMENT

Single 8 square bars (25mm) roller Ø445 with mechanical adjustmen

Single 8 square bars (25mm) roller Ø445
with mechanical adjustment

Simple roller 10 square beam 25 Ø 600 with mechanical adjustment

Simple roller 10 square beam 25 Ø 600
with mechanical adjustment

Double U roller Ø500 with mechanical adjustment

Single flexible blades roller Ø520 with mechanical adjustment and levelling blades

Double roller with flexible blades Ø520 with mechanical adjustment

Single U roller Ø 500 with mechanical adjustment + levelling blade

Single U roller Ø 500 with mechanical adjustment +
levelling blade

Single roller with Ø600 mm cutaway disks with mechanical adjustment

Comb harrow Ø 16 with mechanical adjustment / 1 row for simple rolle

Comb harrow Ø 16 with mechanical adjustment / 1 row for simple roller

THE OPTIONS

Semi-mounted kit

Single roller hydraulic adjustment

OPT FOR THE SEMI-MOUNTED VERSION
to relieve the carrying forward load when coupling et make easy transports.
REGISTERED FOR THE ROAD BY THE DREAL
